ID TJP-5002-B

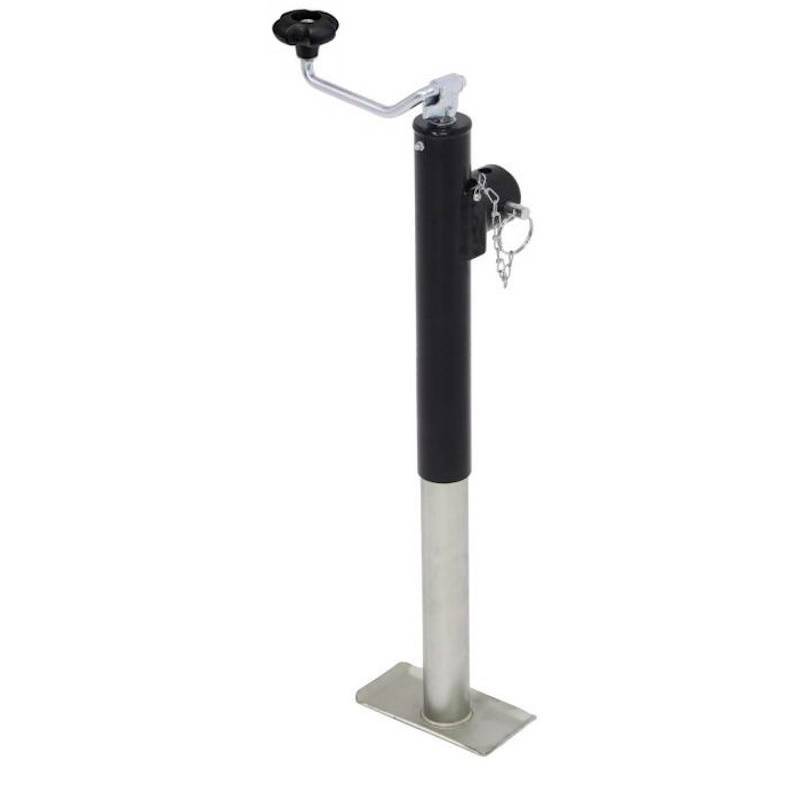

TJP-5002-B 5000 lb Weld-on Topwind Pipe Mount Swivel Jack

Manufacturer RAM Trailer Products
Price: $59.99
-
+
  •    Description
  •    Reviews

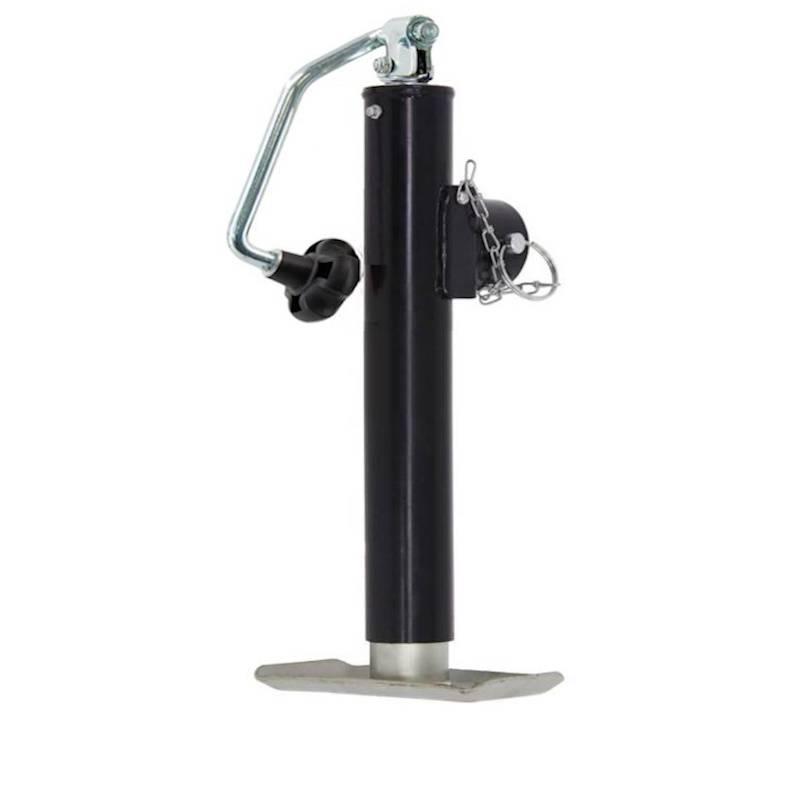

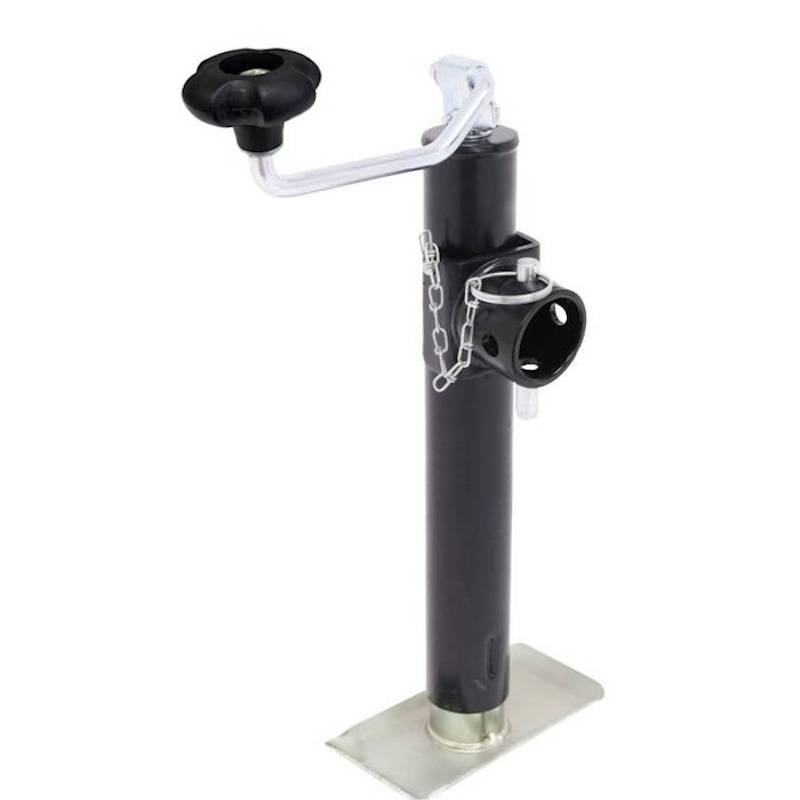

RAM Topwind pipe mount swivel trailer tongue jack comes with the mating pipe bracket for weld-on applications to side of trailer frame. Jack is ideal for use with ag, industrial, commercial, recreational, and many other types of utility trailers. Features a universal weld on pipe mounting base so if you are just replacing your tongue jack, you would not need to weld on the new bracket. Rated for 3,000lb capacity lift and 5,000lb capacity supporting weight limits.

  • 5,000lb Support Capacity / 3,000lb Lift Capacity
  • Comfortable claw knob handle to operate the jack
  • Durable exterior grade black finish on outer tube
  • Clear zinc finish on inner tube and foot

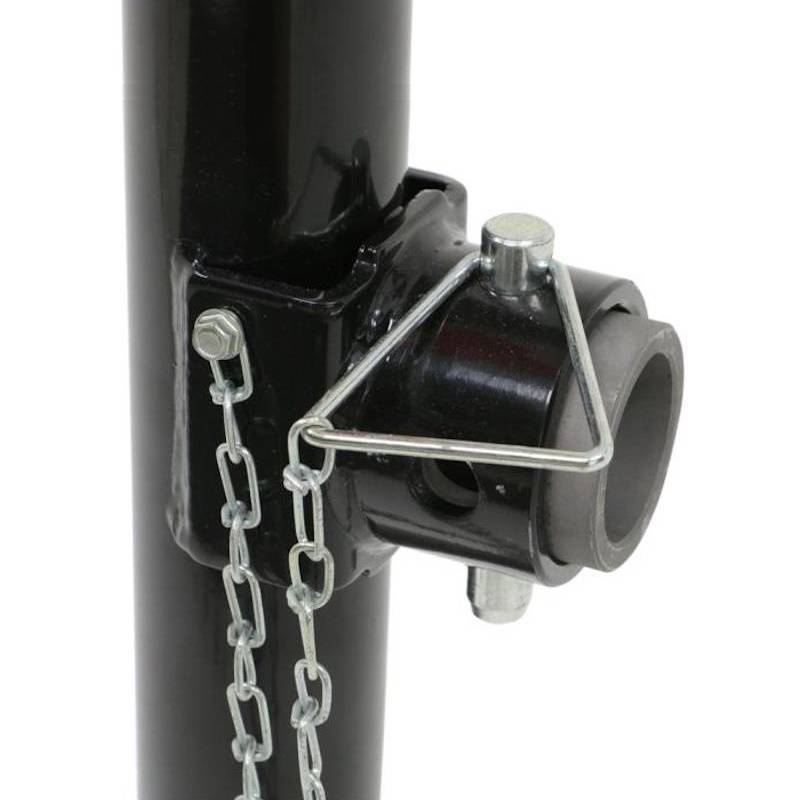

  • 9/16″ pin and lanyard assembly affixed to the jack to activate the swivel mechanism

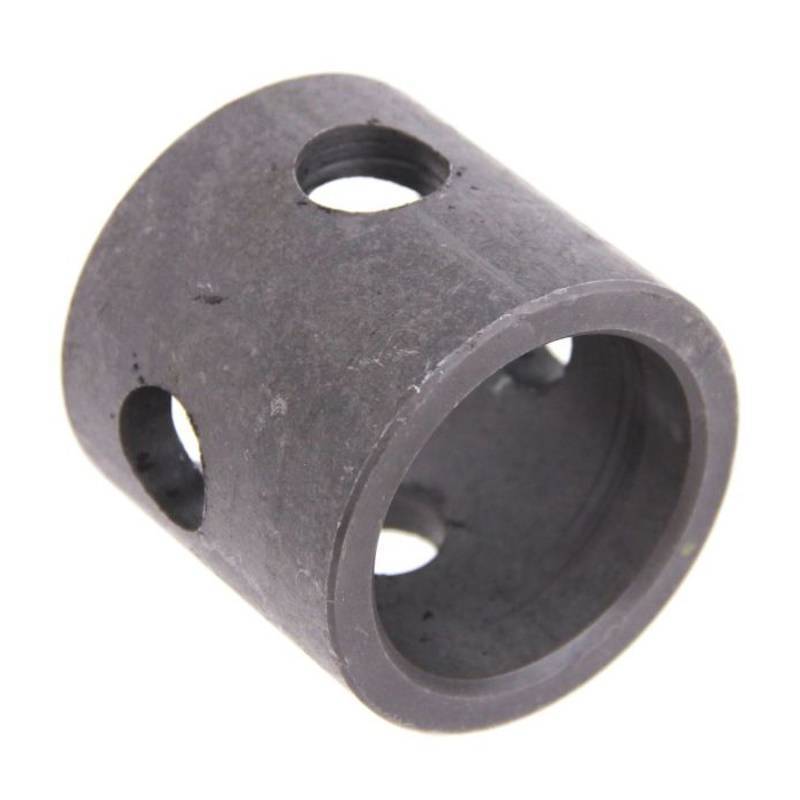

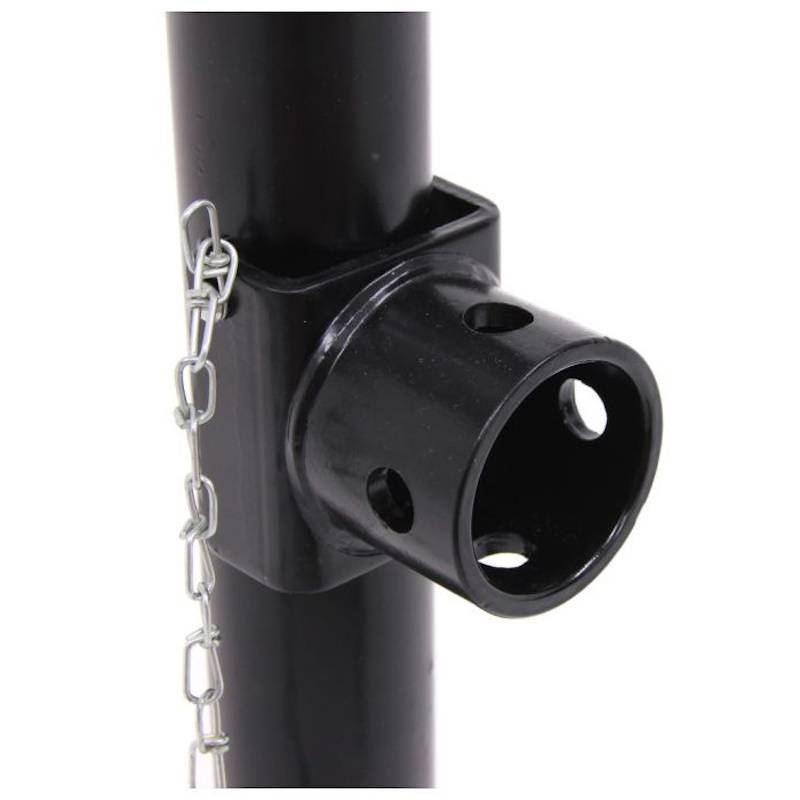

  • Includes a 2″ raw round weld on mating pipe
  • Grease zerk for easy greasing of jack
  • Deep seated snap ring for side load support and raw weld on bracket

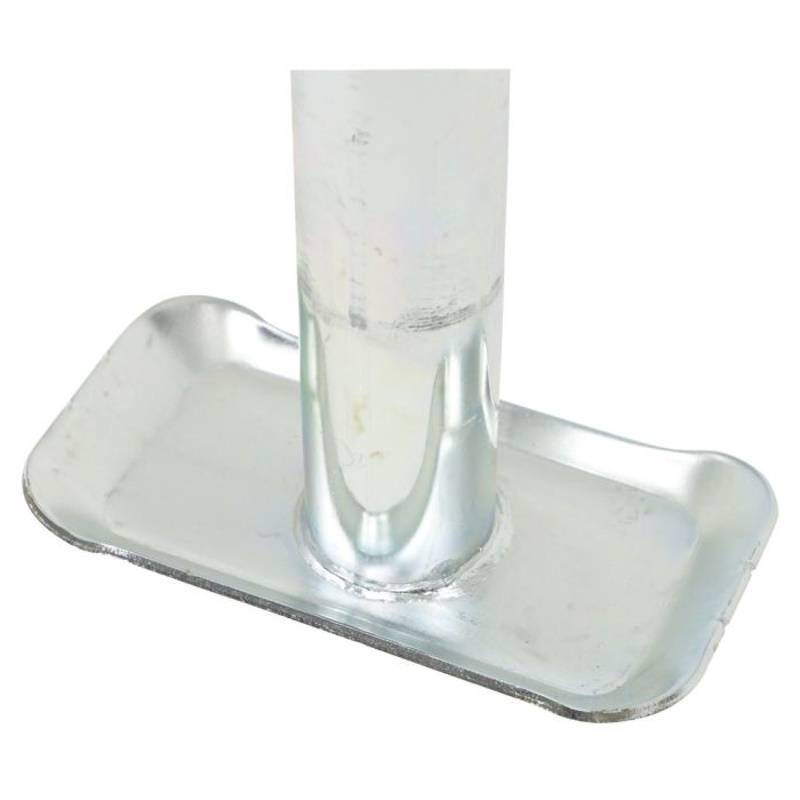

  • 3-3/4″ x 7-1/2″ welded on durable zinc bottom foot for better stability
  • Leg extends 15"

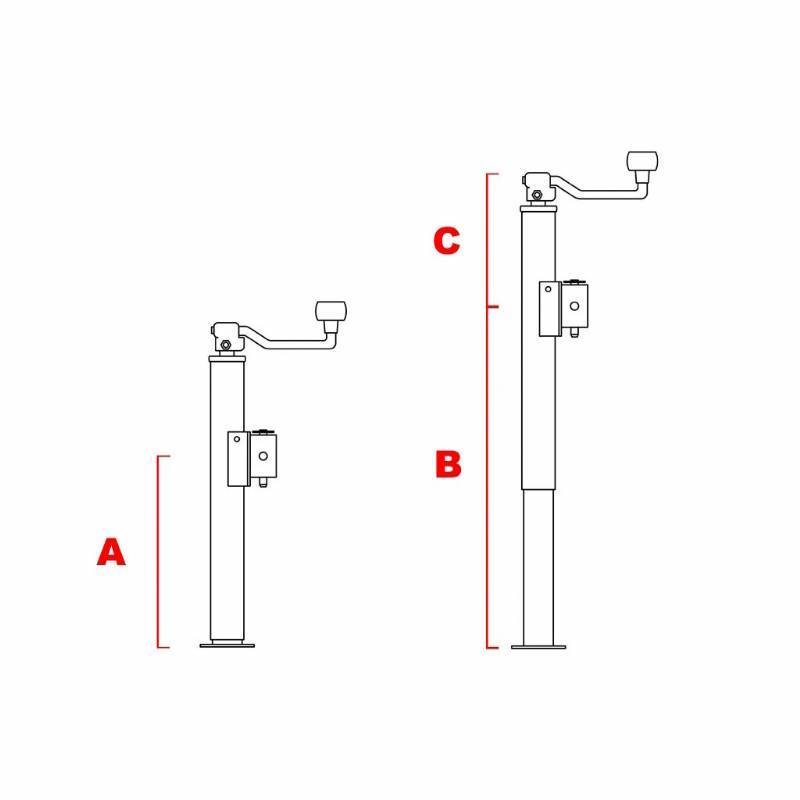

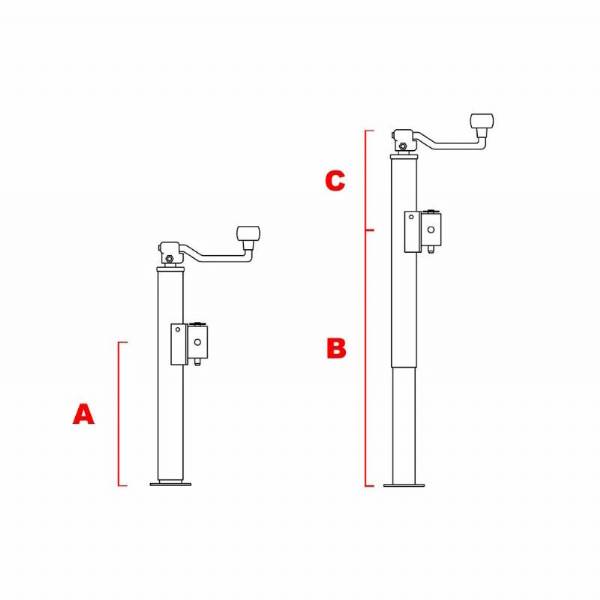

Dimensions see image

  • (A) Retracted = 15"
  • (B) Extended = 31-1/4"
  • (C) Clearance = 5-3/4"
