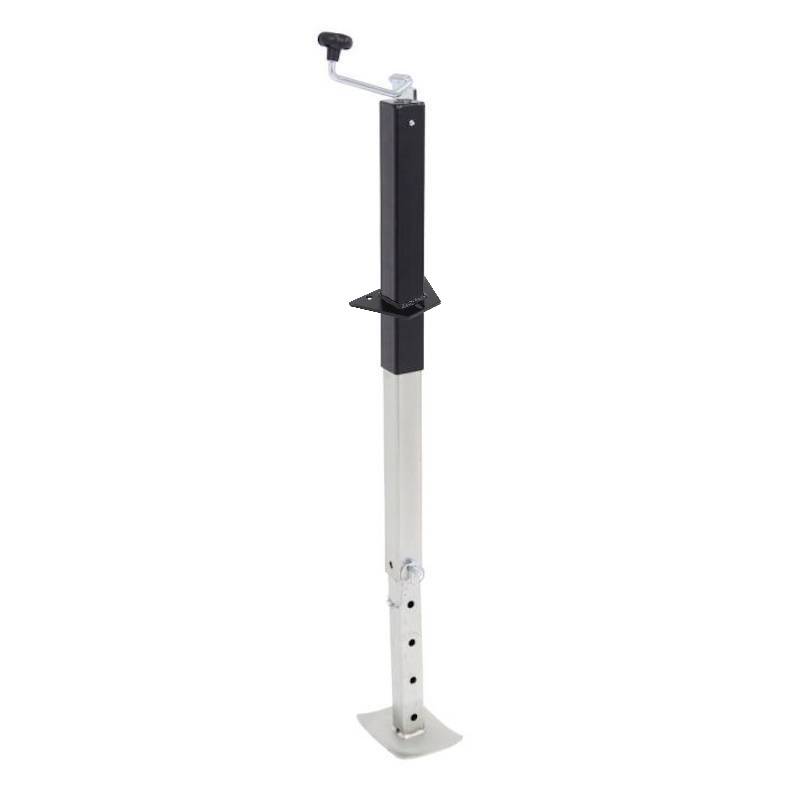

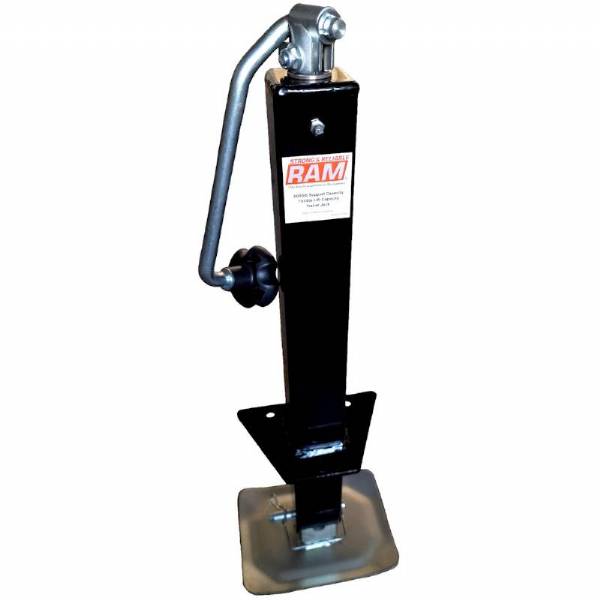

RAM Topwind a-frame mount square trailer jack with drop leg. Rated for 7,000lb capacity lift and 8,000lb capacity supporting weight limits. Comes standard with a black painted outer tube and durable zinc coated inner tube. Includes extendable drop leg with quick pin for easy adjustment. Comes with grease zerk already pressed in for easy greasing of the jack. Jack is ideal for use with ag, industrial, commercial, recreational, and many other types of utility and cargo trailers. This jack is most commonly used on dump trailers and is ideal for improving ground clearance.

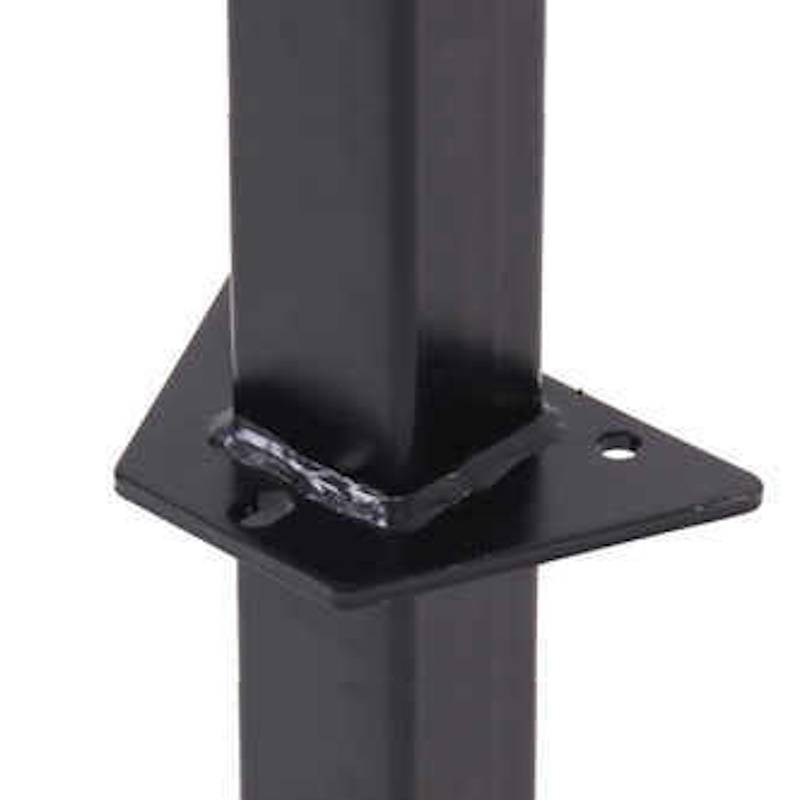

This A-frame Drop leg jack is designed to be a bolt on to the a-frame of your trailer coupler as long as is has a square cut out.
- 8,000lb Support Capacity / 7,000lb Lift Capacity

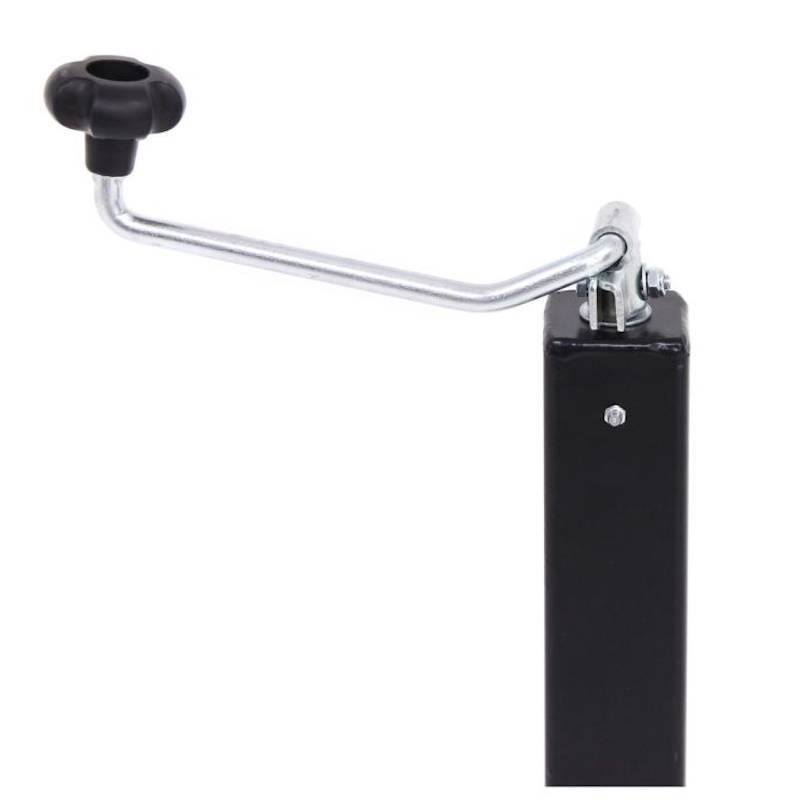

- Comfortable claw knob to operate the jack
- Durable exterior grade black finish on outer tube and clear zinc finish on inner tube and drop leg foot
- 2-1/2″ square outer tube construction
- Grease zerk for easy greasing of jack

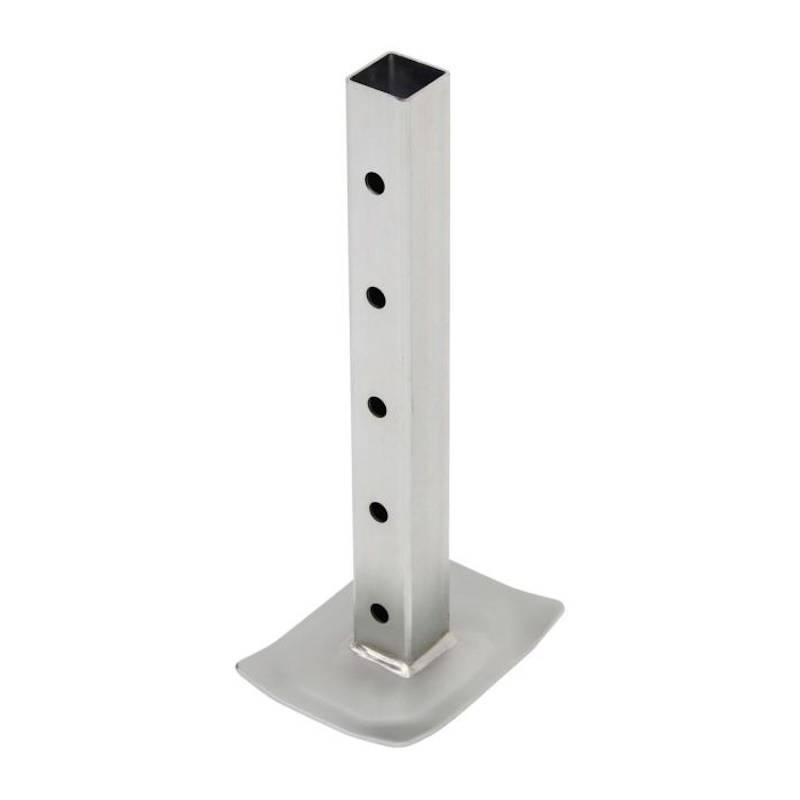

- Adjustable height bottom leg with 6" x 8" foot plate included
- Intermediate leg extends 13-3/4"

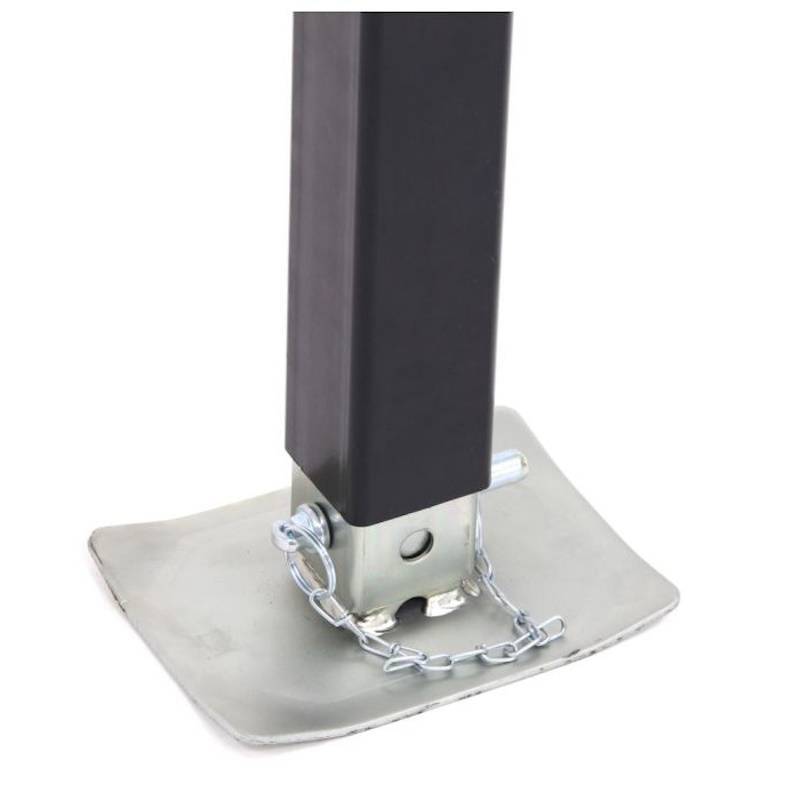

- Drop leg with pull pin extends up to 15"

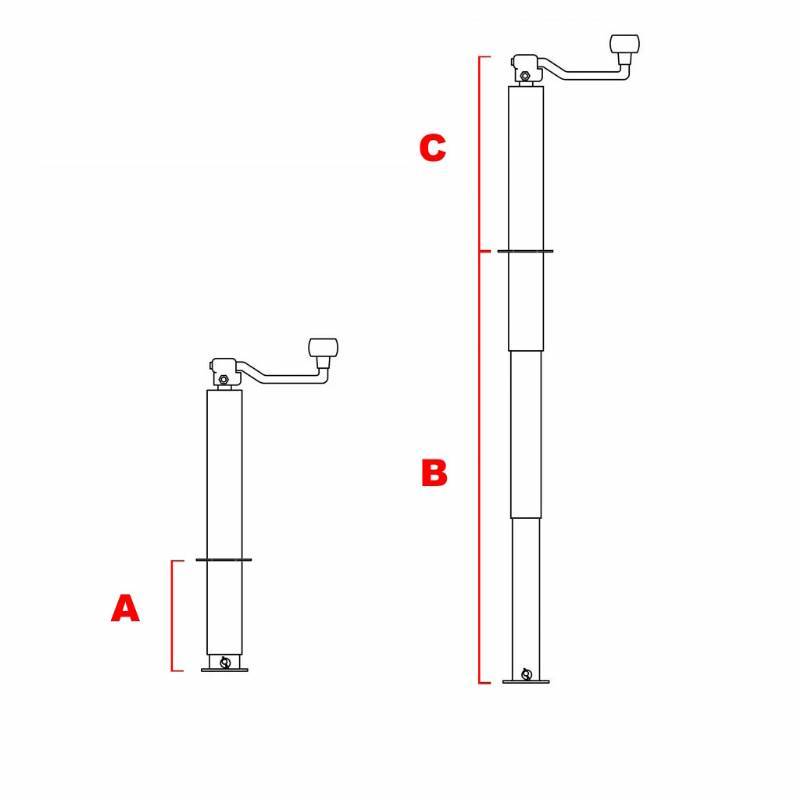

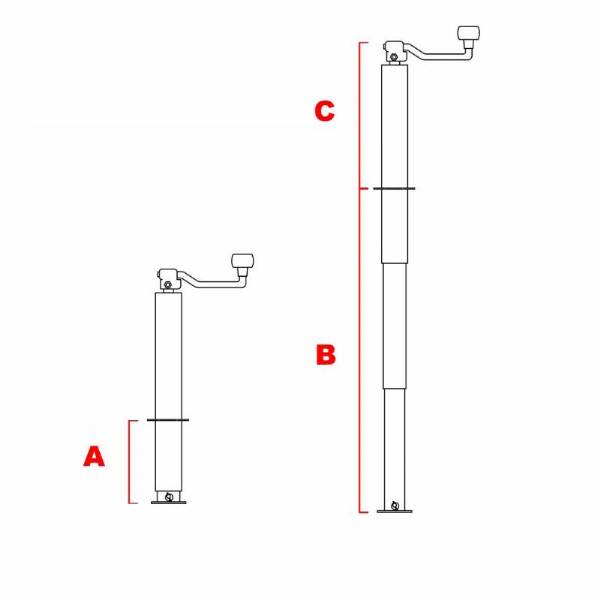

Dimensions see image
- (A) Retracted = 8"
- (B) Extended = 36"
- (C) Clearance = 16-1/4"
