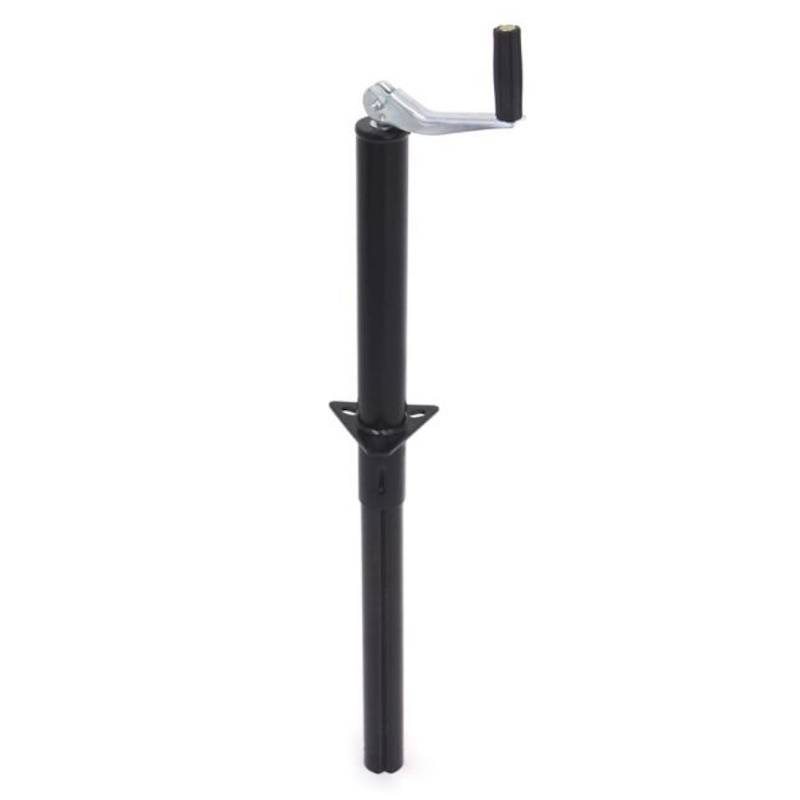

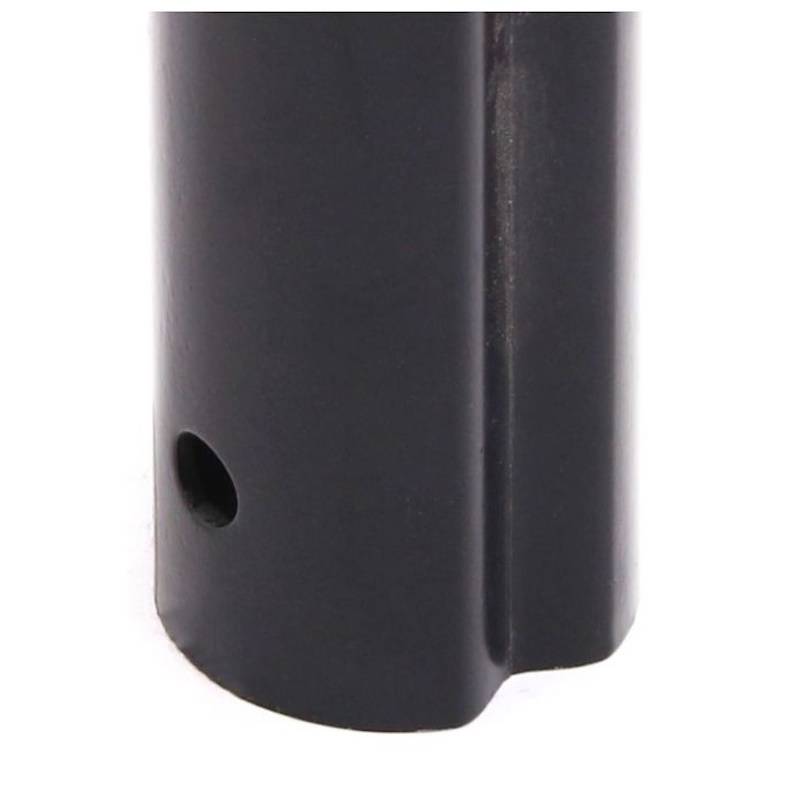

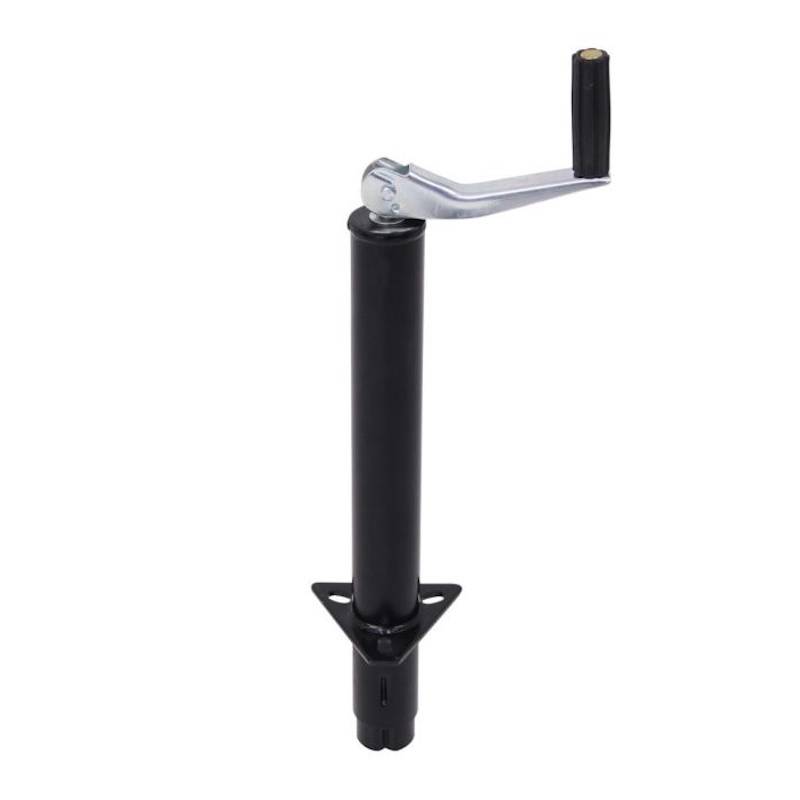

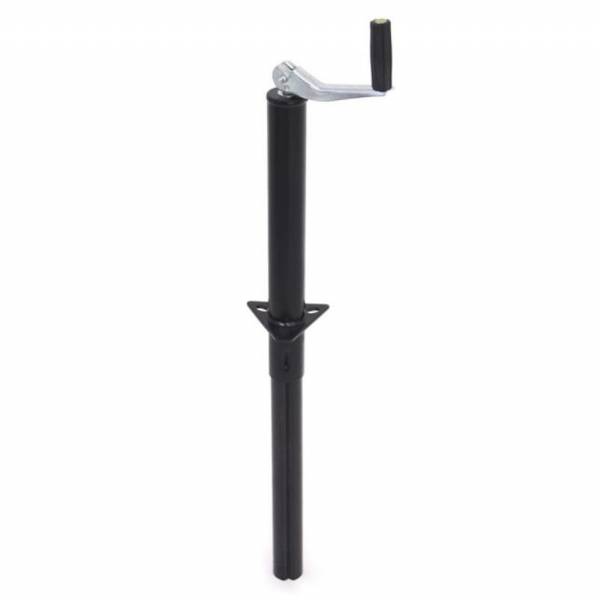

RAM Topwind trailer tongue jack used with trailers that have an a-frame coupler. Can be welded or bolted in place. Rated for 2,000lb capacity lift and 3,000lb capacity supporting weight limits. Bottom tube is pre drilled to accept standard trailer jack accessories. Low mounting base for better ground clearance.
- 3,000lb Support Capacity / 2,000lb Lift Capacity

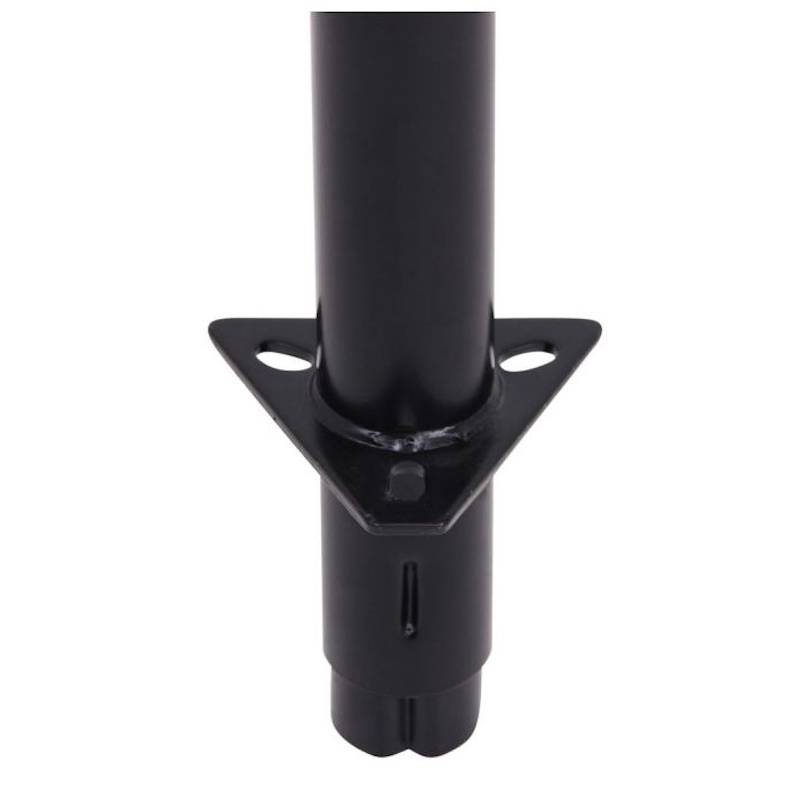

- Pre-installed mounting plate fits all standard a-frame couplers

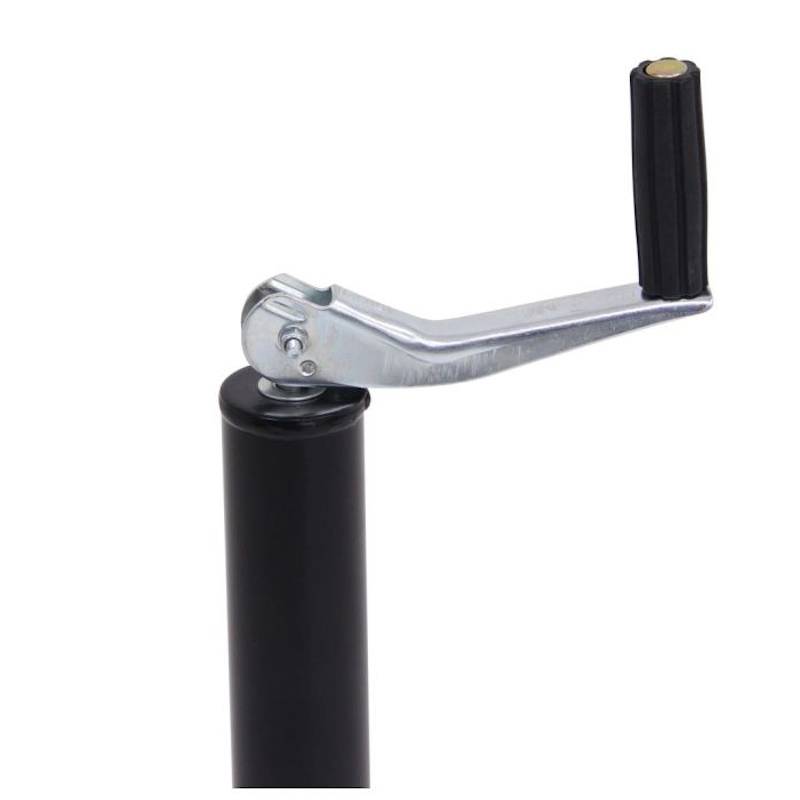

- Large grooved comfort handle to operate the jack
- Durable exterior grade black finish on outer and inner tubes
- Outer tube diameter of outside tube is 2-1/4"
- Outer tube diameter of inside tube is 2"
- Handle arms have a durable zinc finish
- Can be bolt-on or weld-on
- Mounts to all standard A-frame couplers
- Leg extends 14-1/2"

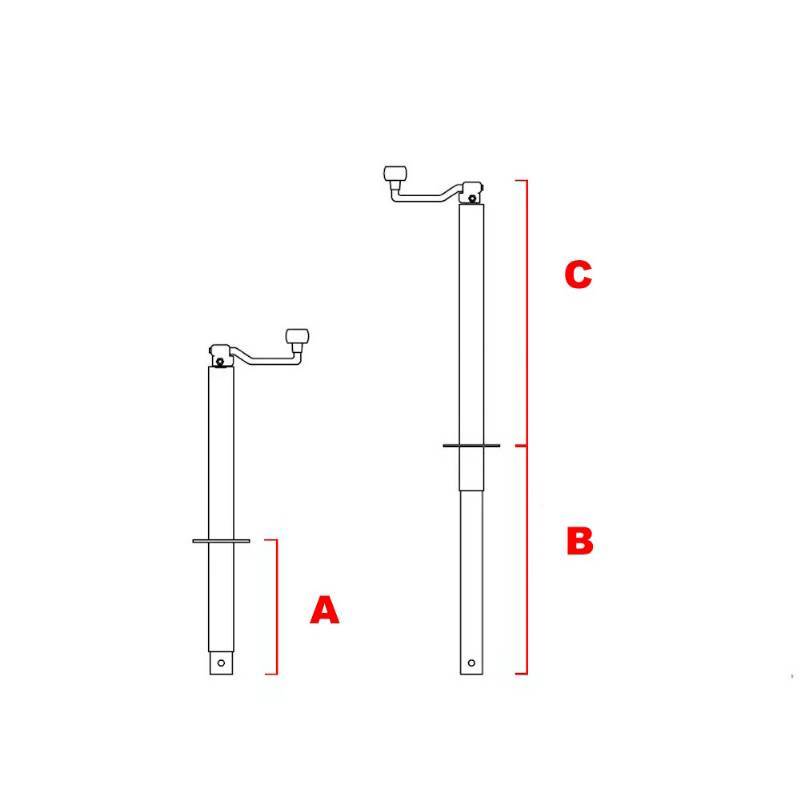

Dimensions see image
- (A) Retracted = 4-1/2"
- (B) Extended = 19"
- (C) Clearance = 14-1/2"
