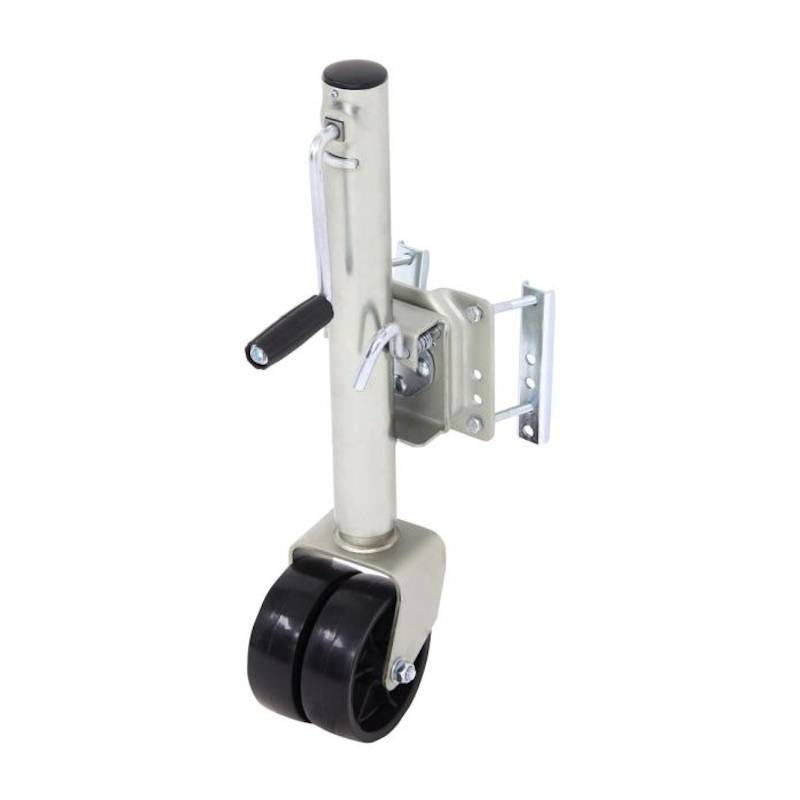

RAM Sidewind bolt-on swing up swivel marine trailer jack. Easily bolts around trailer frames that are 2", 3" 4" or 5" tall. Rated for 1,500lb supporting and lift capacity weight limits. Includes swivel wheel for easy maneuvering. Ideal for use with boat, sport craft, snowmobile and other recreational trailers.
Bolt-on swivel jack is typically used on marine trailers. Jack has a zinc coating to help resist corrosion. Jack has spring loaded pin to make the swivel process quick and easy. When trailer is connected to tow vehicle jack can be quickly swiveled up and out of the way for traveling. Then when the trailer needs to be disconnected the jack can just as easily swiveled down to lift trailer.
- 1,500lb Support/Lift Capacity

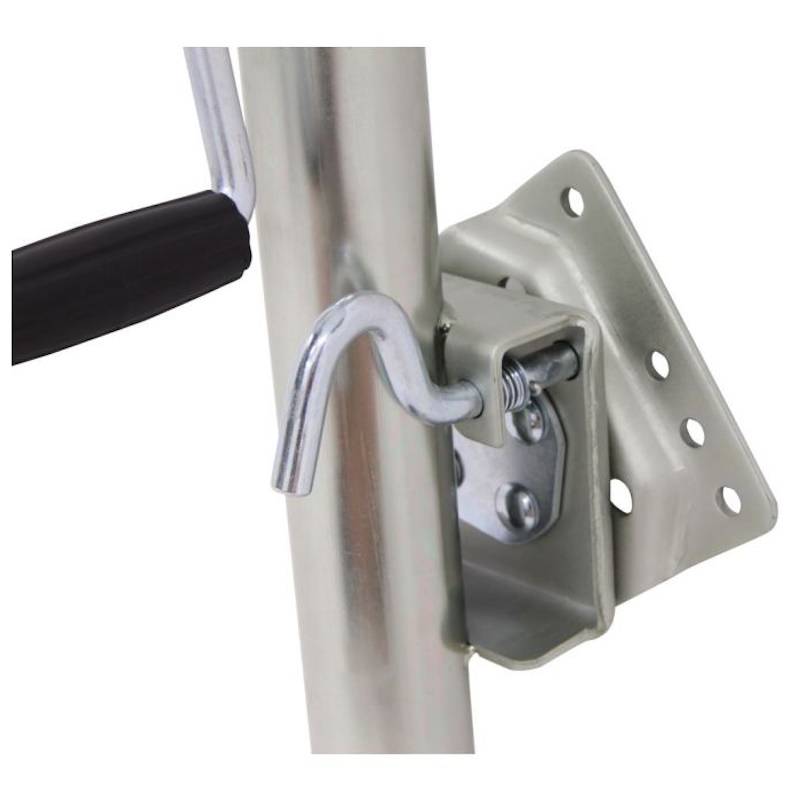

- Large 1/2″ pull pin to activate the swivel mechanism

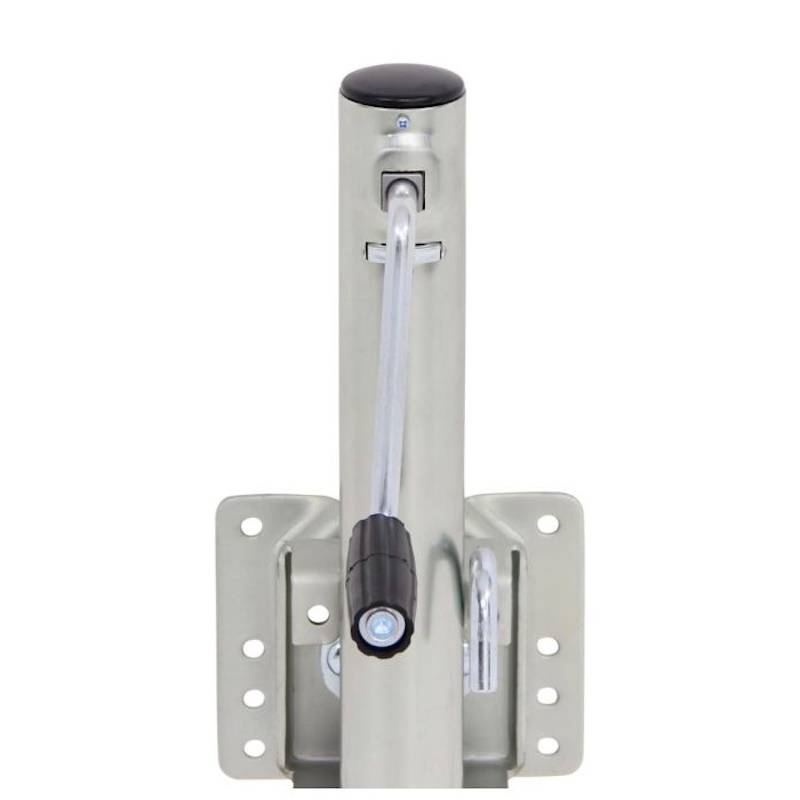

- Large grooved comfort handle to operate the jack

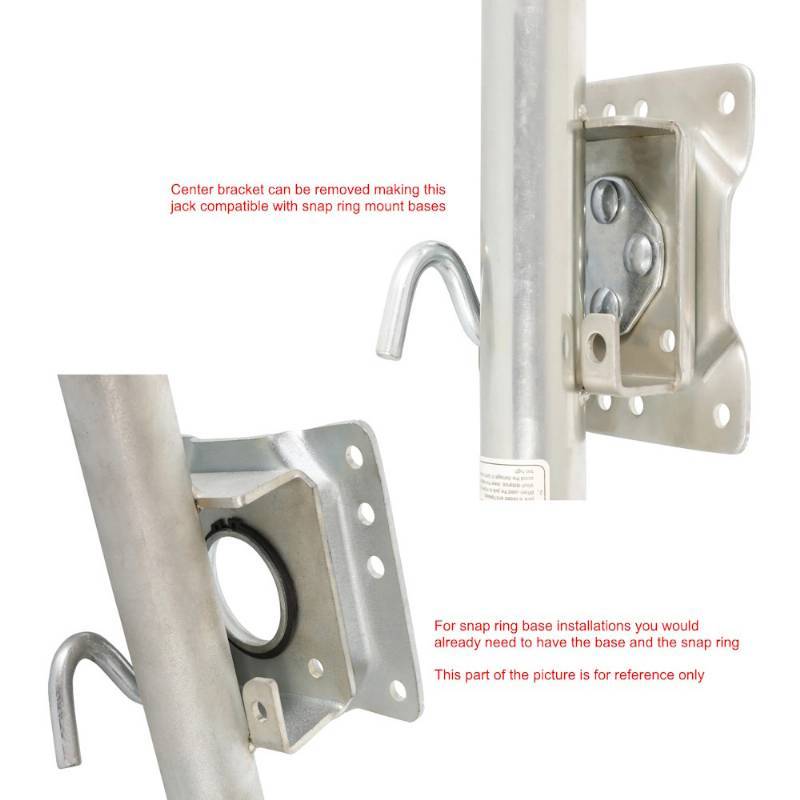

- Four bolt pin through bracket design with large diamond shaped washer for side load support
- Durable clear zinc finish for added corrosion resistance

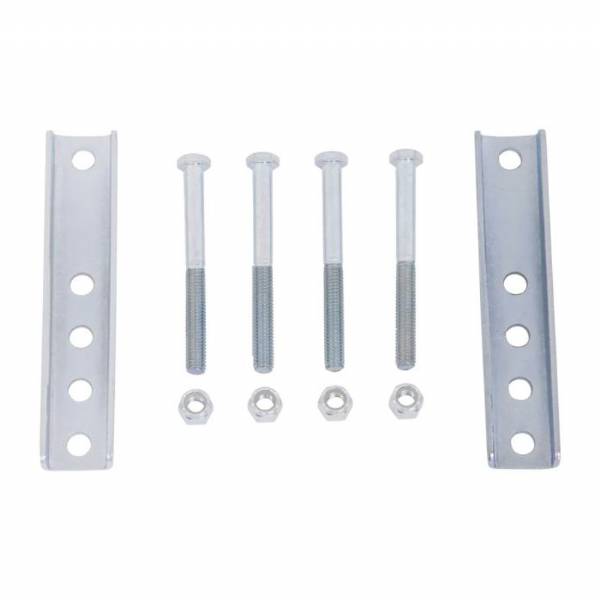

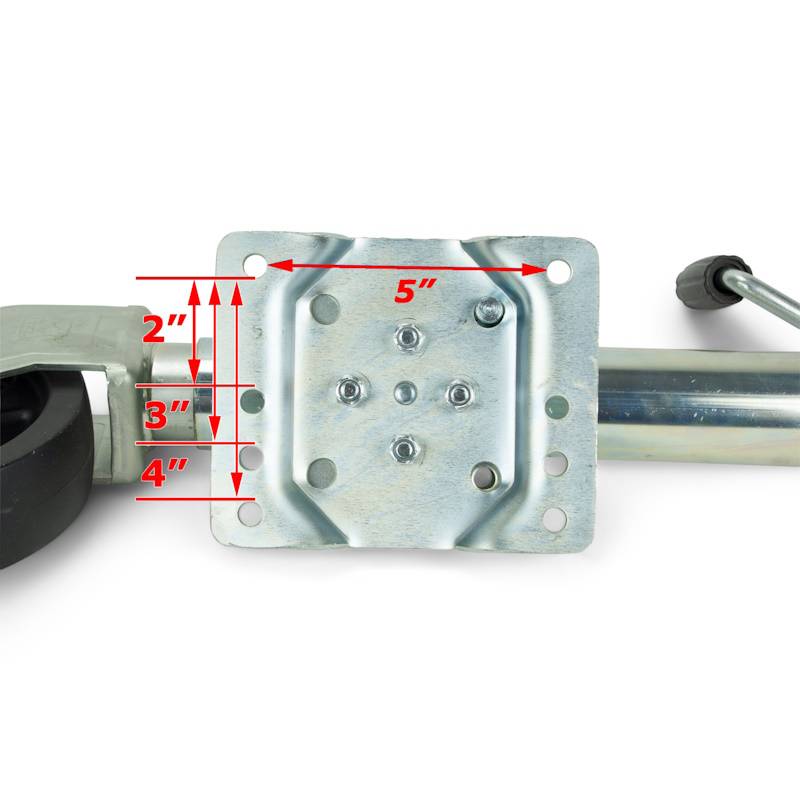

- Bolt on hardware included to mount to 2", 3" 4" or 5" tall trailer frames

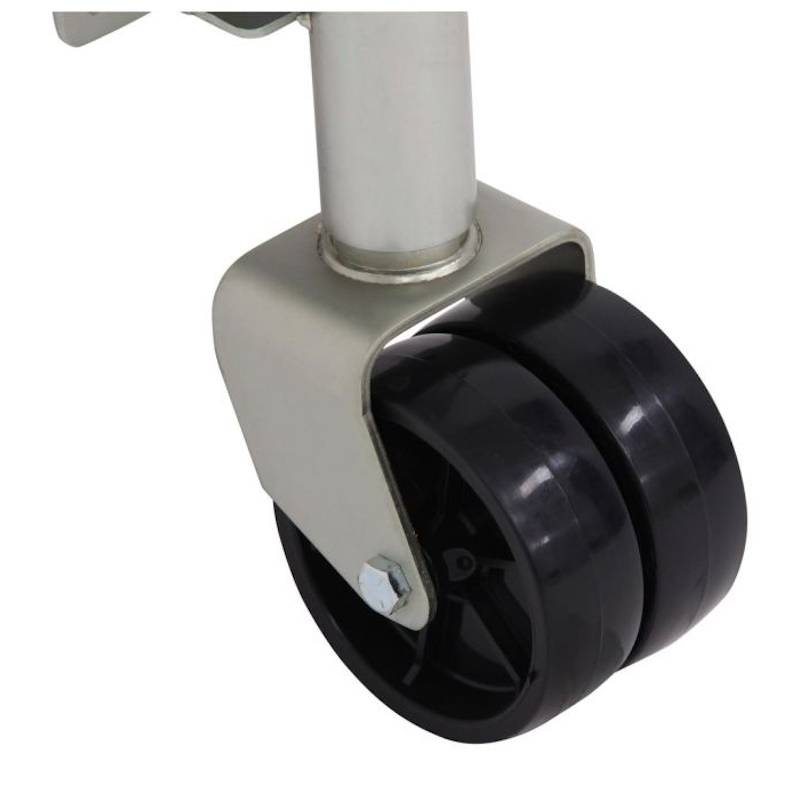

- Dual 6″ poly caster wheels

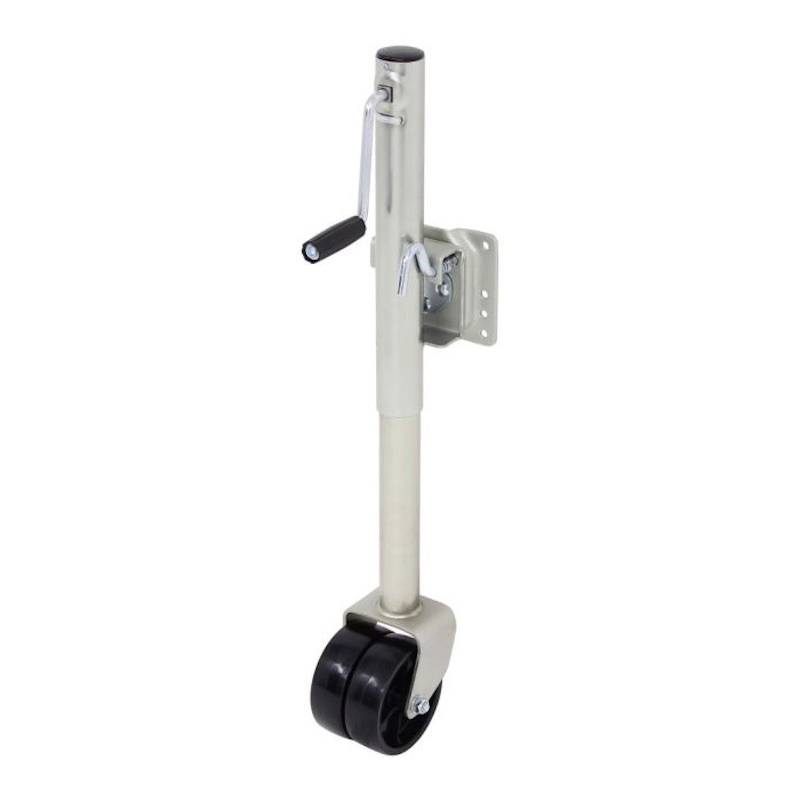

- Leg extends 10"

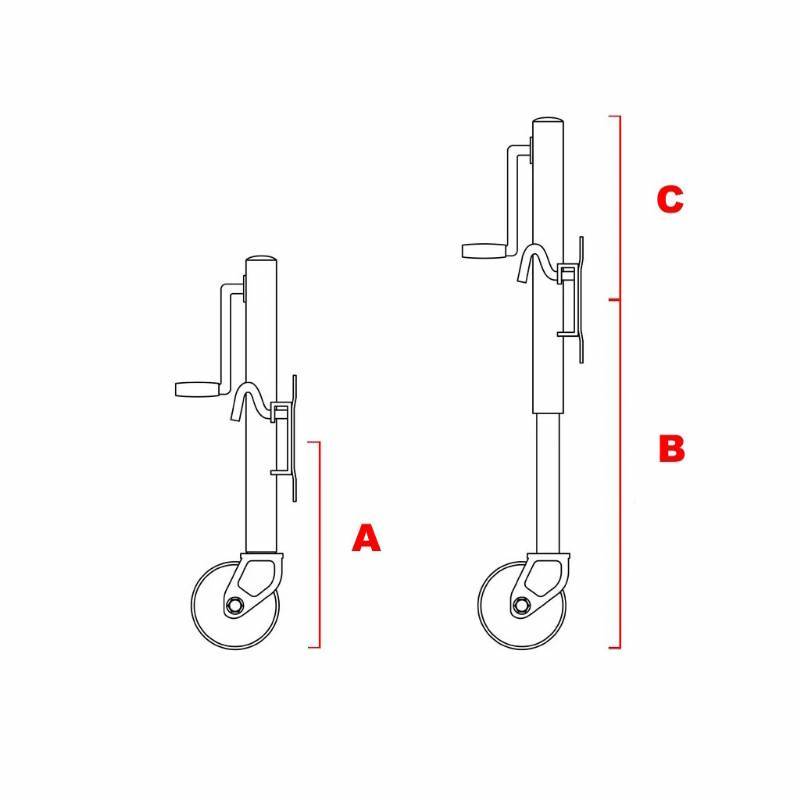

Dimensions see image
- (A) Retracted = 12"
- (B) Extended = 22-1/2"
- (C) Clearance = 12-3/4"
