The Dexter Axle K08-248-1G pre greased idler hub kit fits 2990lb to 3500lb capacity axles and has a 5 on 4-1/2" bolt pattern. No need to assemble, this hub drum already has the bearings greased with Dexter Axle™ Multipurpose #2 lithium complex water resistant wheel bearing grease. The grease seal is already installed. No need to pack the bearings. Compatible all with 1-1/16" inner diameter outer bearing and a 1-3/8" inner diameter inner bearing combinations and comes with both lubeable style dust cap and standard solid dust cap that are both interchangeable with all E-Z Lube, Sure-Lube, Accu-Lube, Super Lube, Easy Grease and non lubing spindles. Interchangeable with all major trailer axle brands.

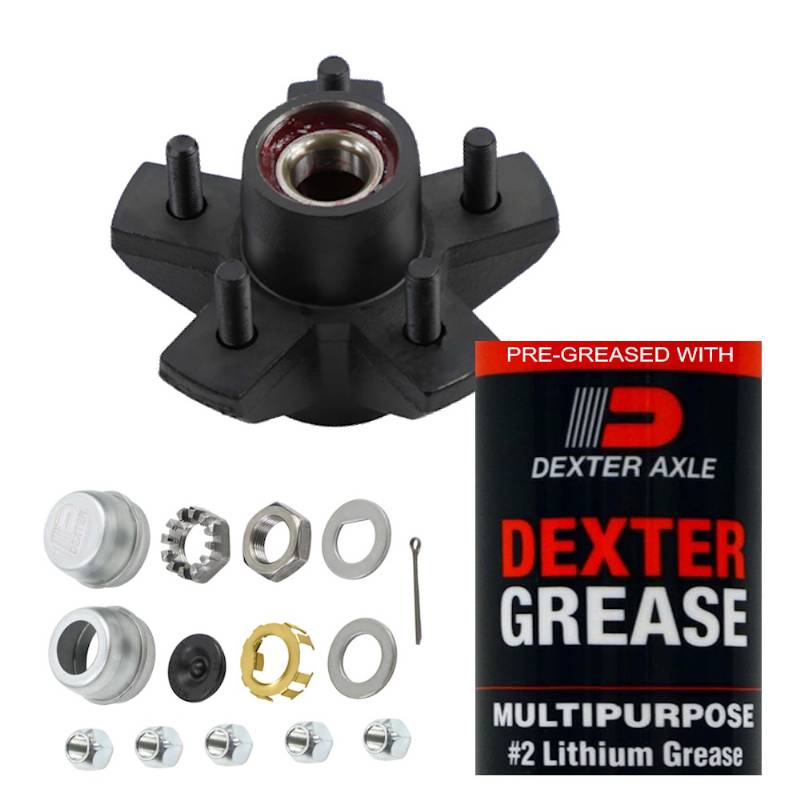

Complete pre-greased fully assembled boxed trailer idler hub kit for 1 wheel.
Pre-greased fully assembled kit Includes:

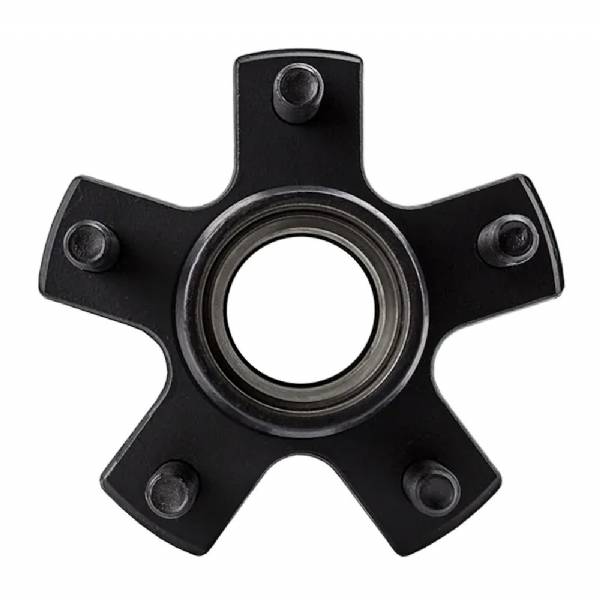

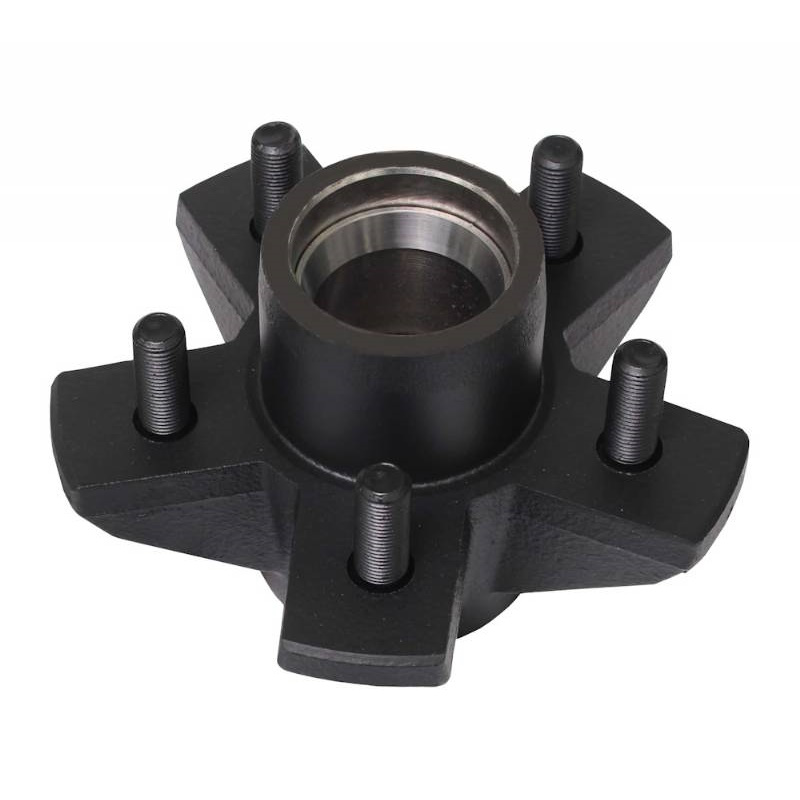

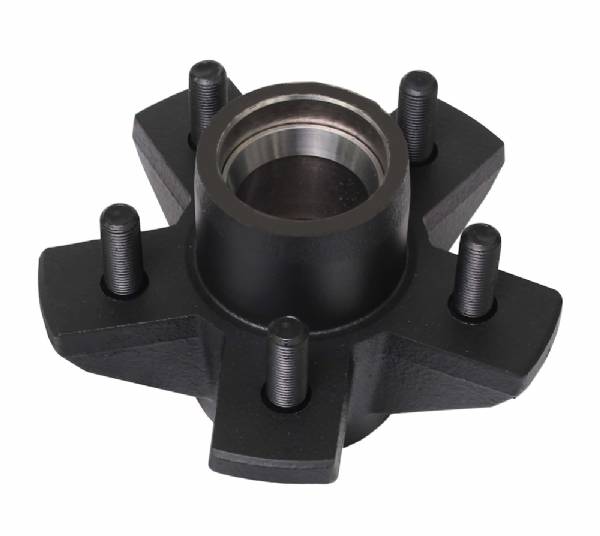

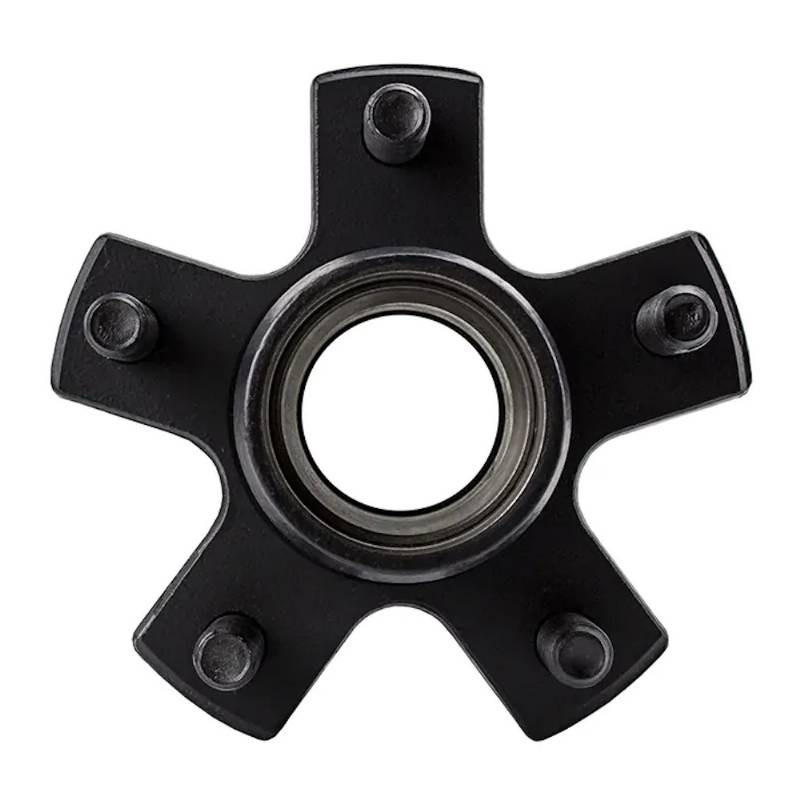

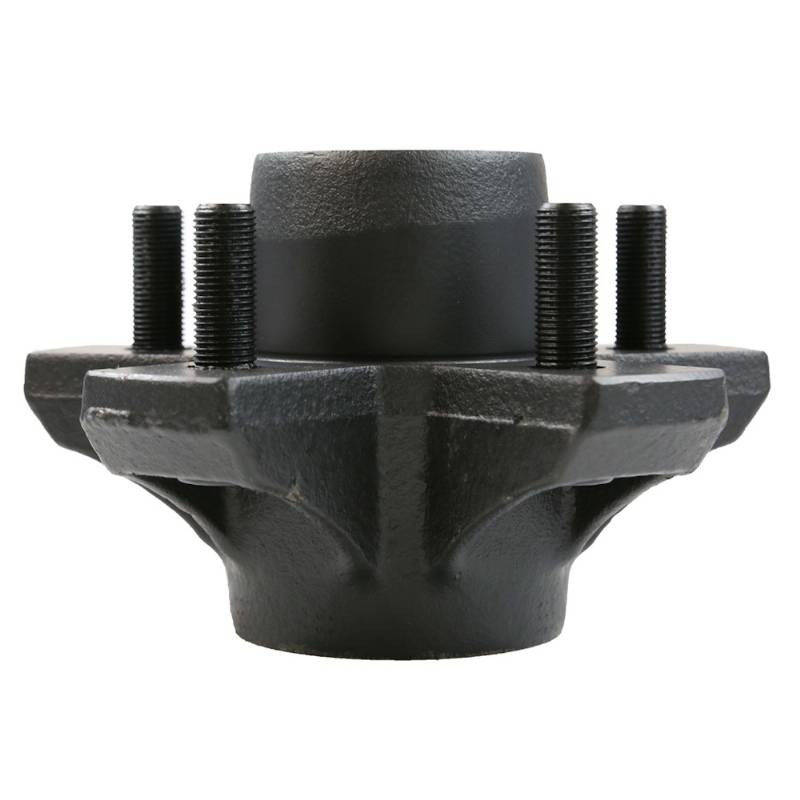

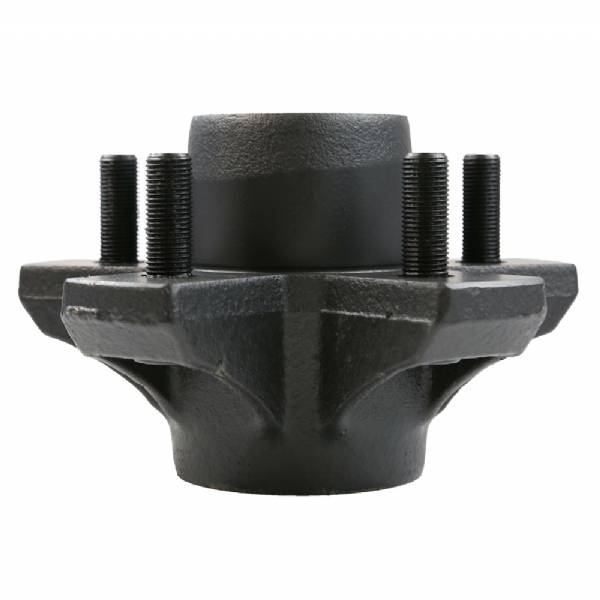

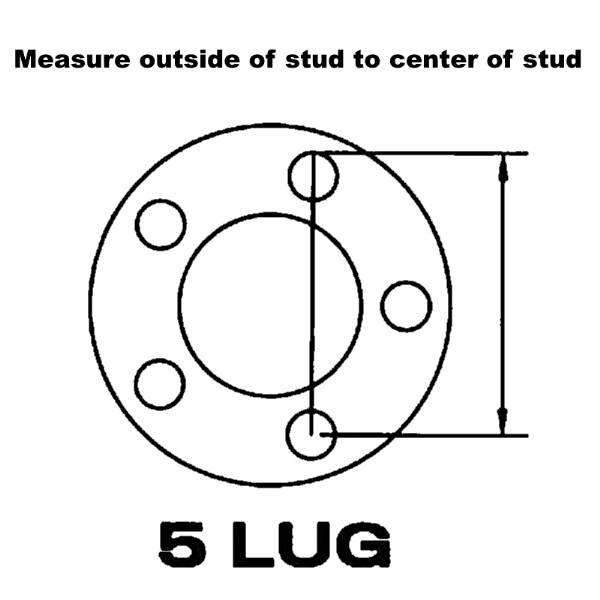

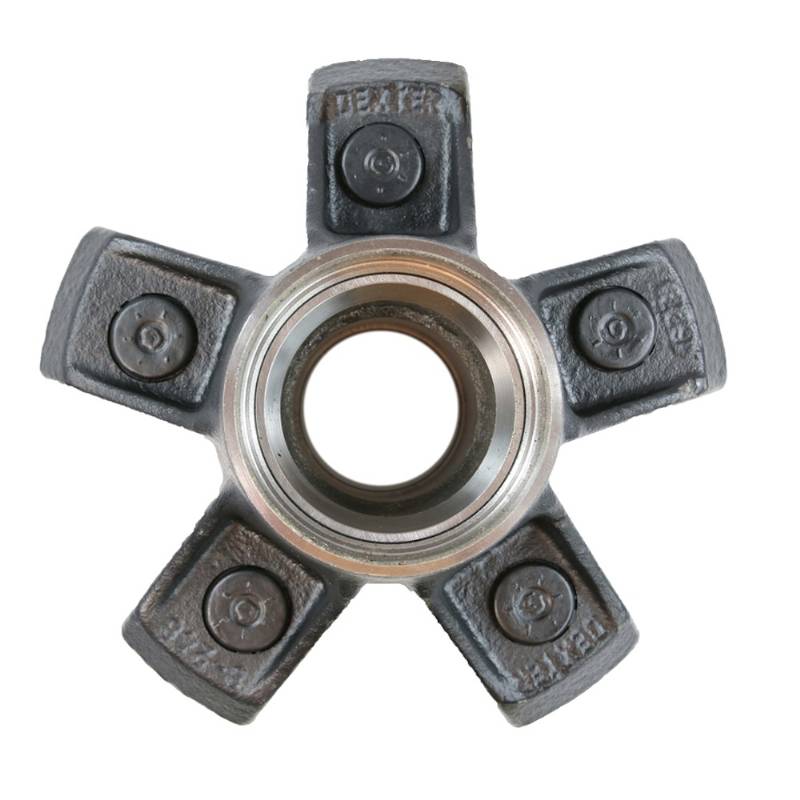

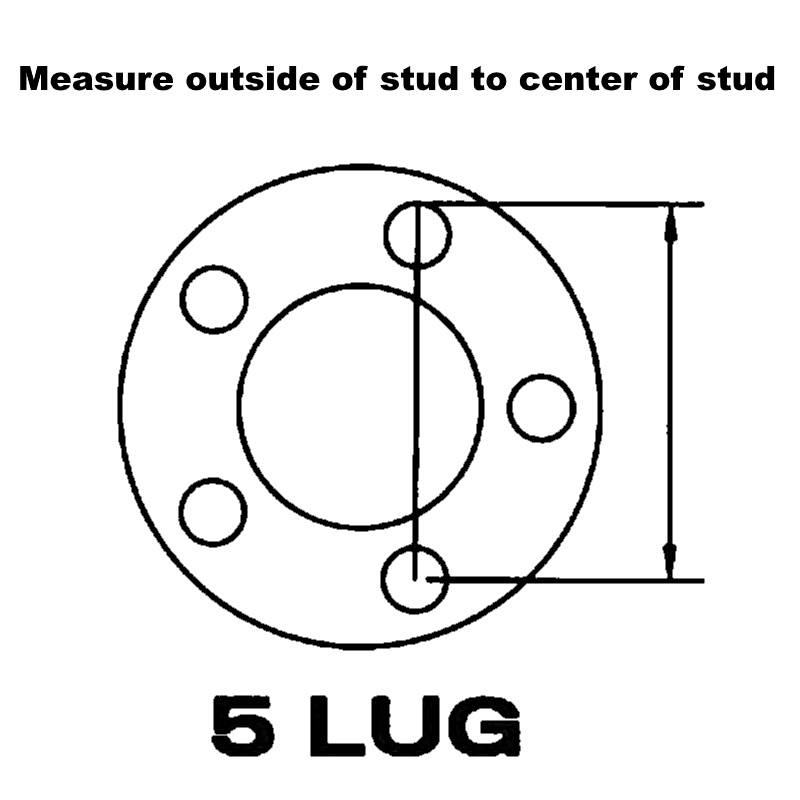

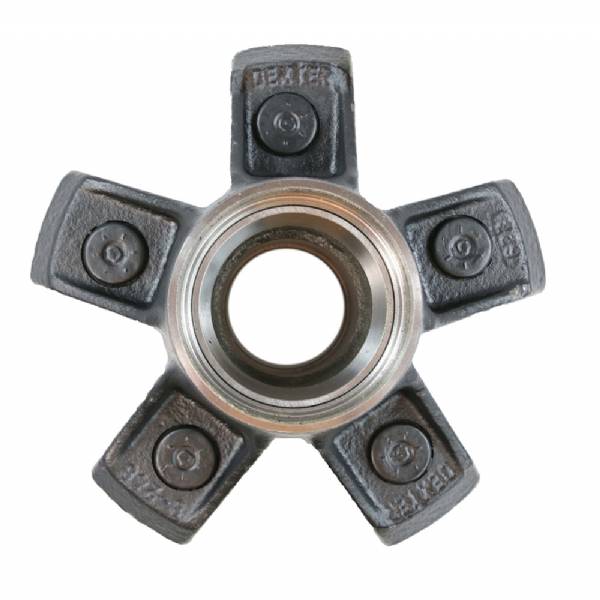

- 1 - 008-248-05 idler hub with 5 on 4-1/2" lug bolt pattern (see image on how to measure lug spacing)
- 6-1/4" diameter flange
- 4-1/8" overall height
- 1/2"-20 thread pitch lug studs
- Rated 1750 lbs. capacity per side
- 1 - 031-031-02 L44649 bearing cone (pre-greased and pre-installed)
- 1-1/16" (1.063") inner diameter
- 1 - 031-033-02 L68149 bearing cone (pre-greased and pre-installed)
- 1-3/8" (1.378") inner diameter
- 1 - 031-031-01 L44610 outer bearing cup race (pre-installed)
- 1 - 031-033-01 L68111 inner bearing cup race (pre-installed)
- 1 - 010-019-00 (171255TB) Grease seal (See Note)
- 1.719" inner diameter
- 2.565" outer diameter

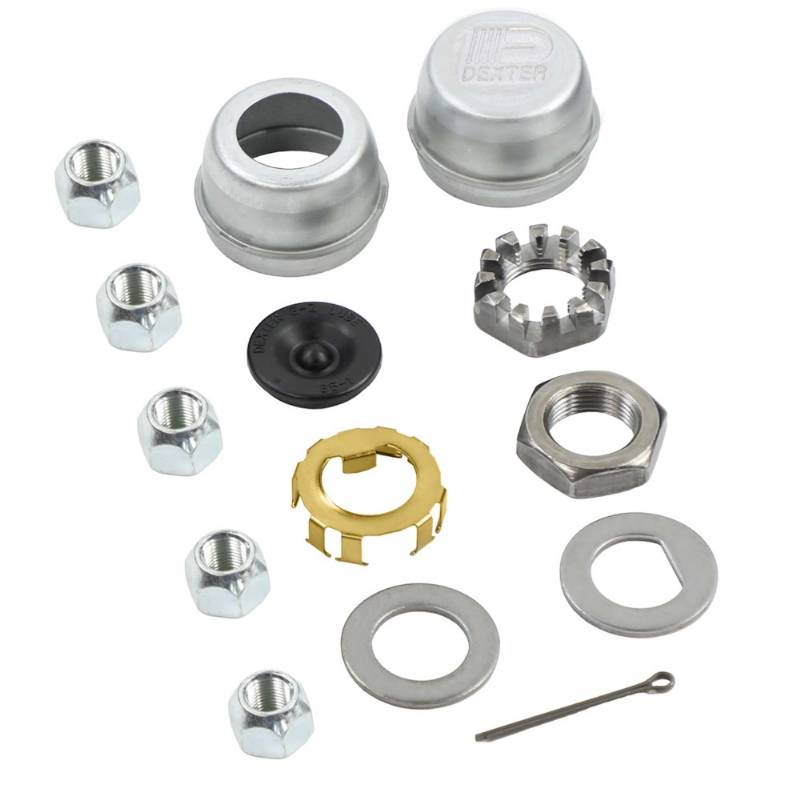

- 1 - 021-041-01 1.98" outer diameter lube style cap
- 1 - 085-001-00 rubber lube style cap plug
- 1 - 021-003-00 1.98" outer diameter standard dust cap
- 5 - 006-080-00 1/2"-20 thread pitch zinc plated 60 degree coned lug nuts
- 1 - 005-023-00 1" d shaped spindle washer
- 1 - 005-027-00 1" round spindle washer
- 1 - 006-176-00 1" slotted spindle nut
- 1 - 019-002-00 cotter pin
- 1 - 006-191-00 1" hex spindle nut
- 1 - 006-190-00 d shaped hex nut retainer
- 1 - 059-831-00 instruction sheet
This kit is interchangeable with all industry standard axle brands including Dexter Axle, Lippert Components (LCI), Rockwell American, AL-KO, Axle Tek, TK Trailer Axles, UFP by Dexter Marine, Tie Down by Dexter Marine, and C.E. Smith.
Note: Some trailer applications use a 1.687" inner diameter grease seal. This kit will not work on those applications without purchasing an replacement grease seal#168255TB
