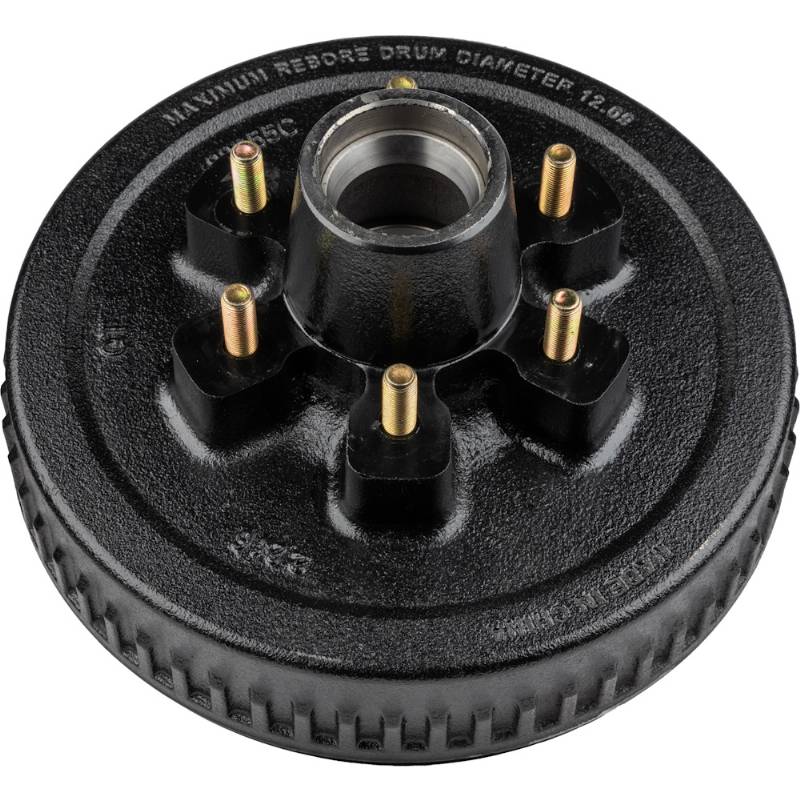

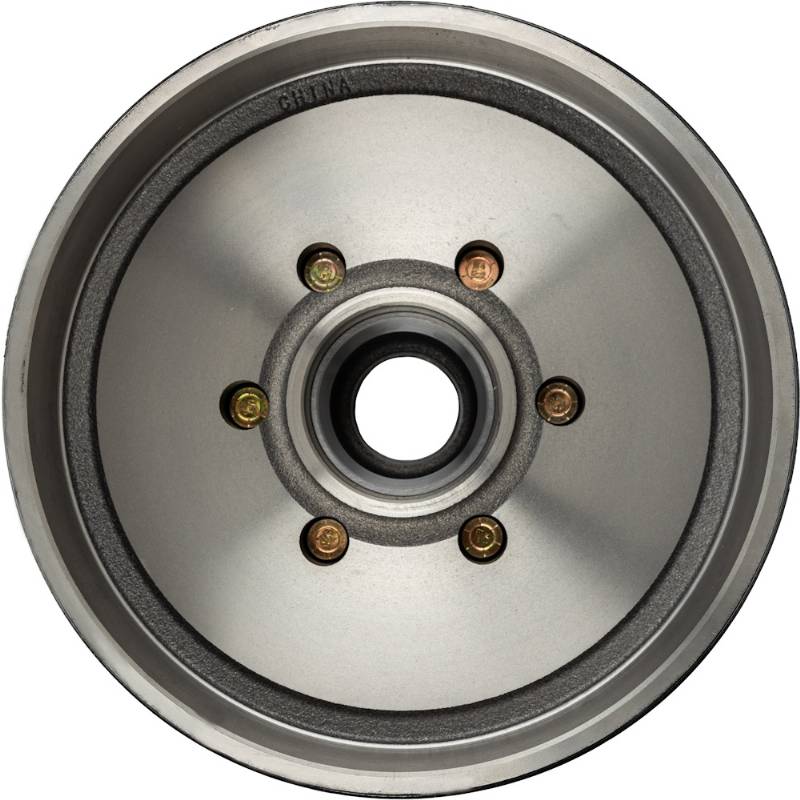

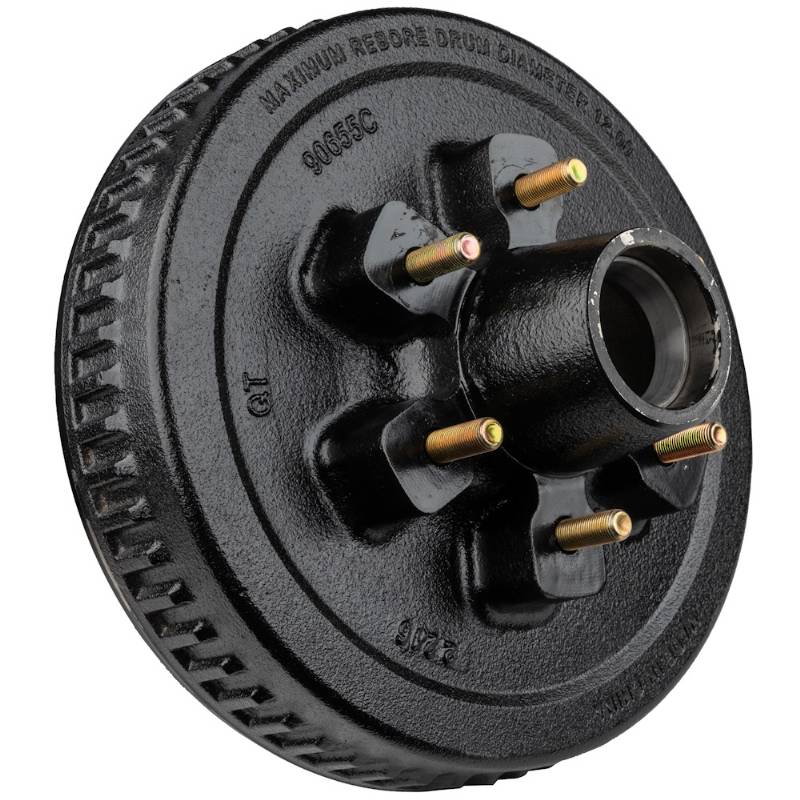

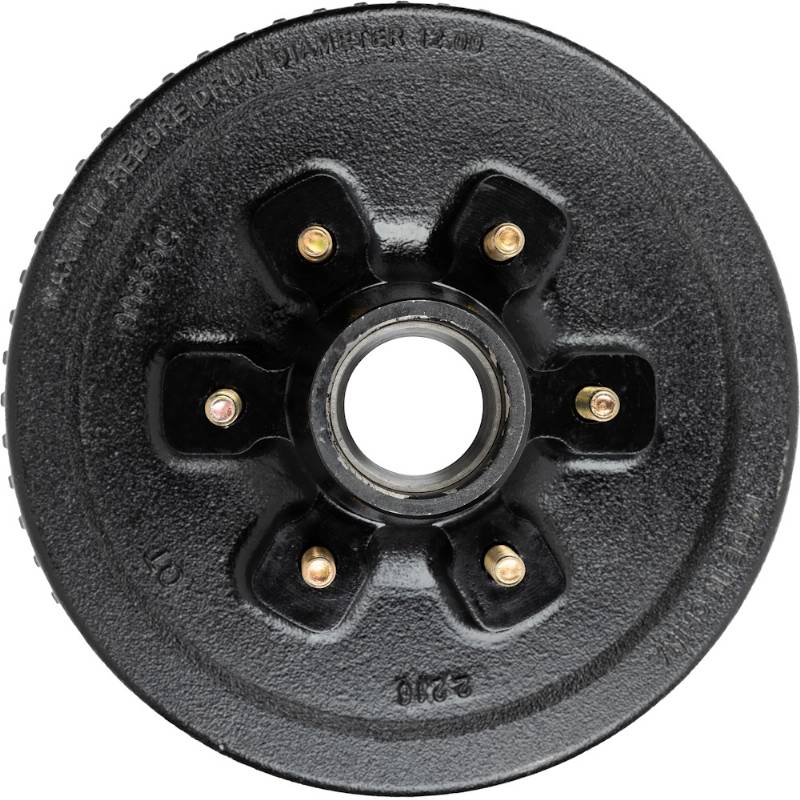

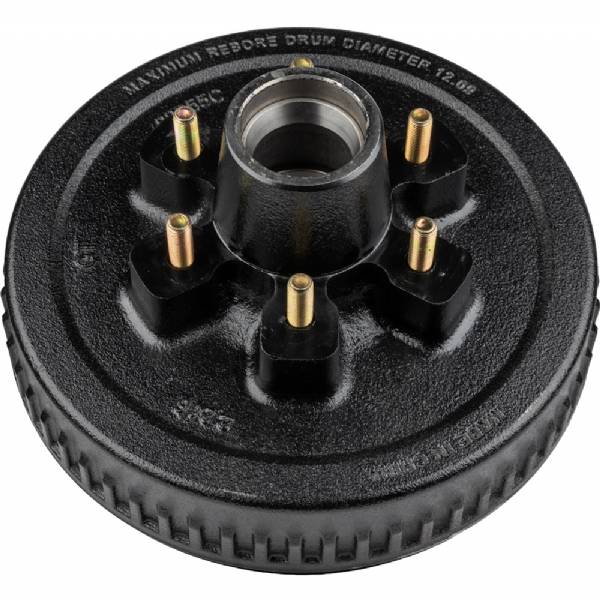

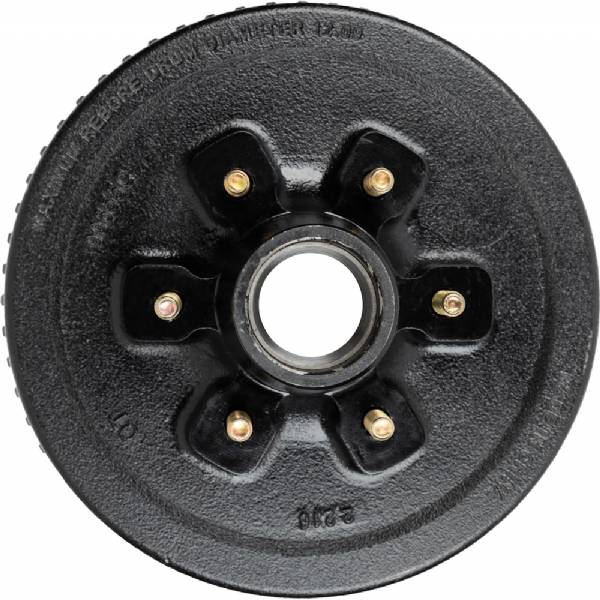

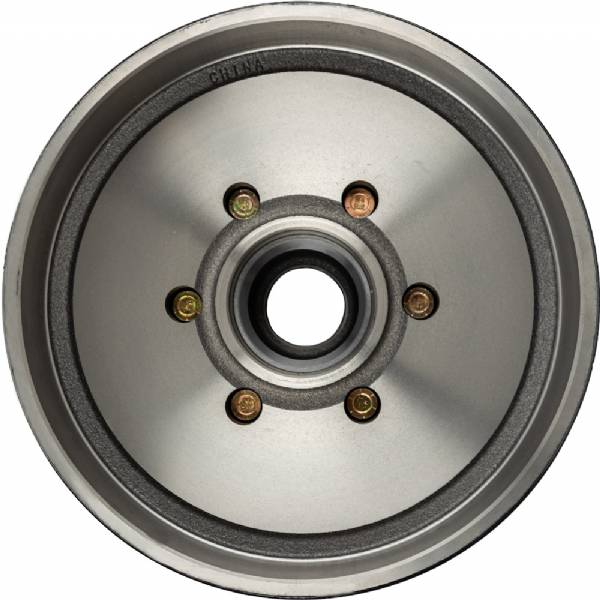

Import 12" hub and drum fits 5000lb and 6000lb capacity axles and has a 6 on 5-1/2" bolt pattern. Compatible with electric and hydraulic drum brake systems. Compatible all with E-Z Lube, Sure-Lube, Accu-Lube, Super Lube, Easy Grease and non lubing spindles. Interchangeable with all major trailer axle brands that use a 1-1/4" inner diameter outer bearing and a 1-3/4" inner diameter inner bearing combination.

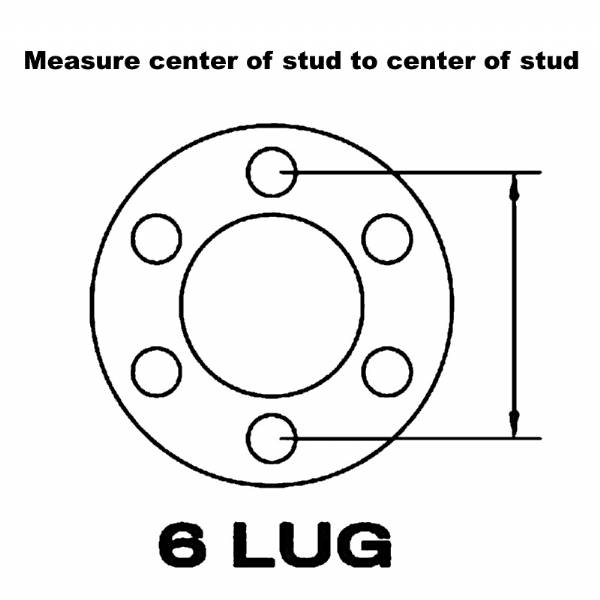

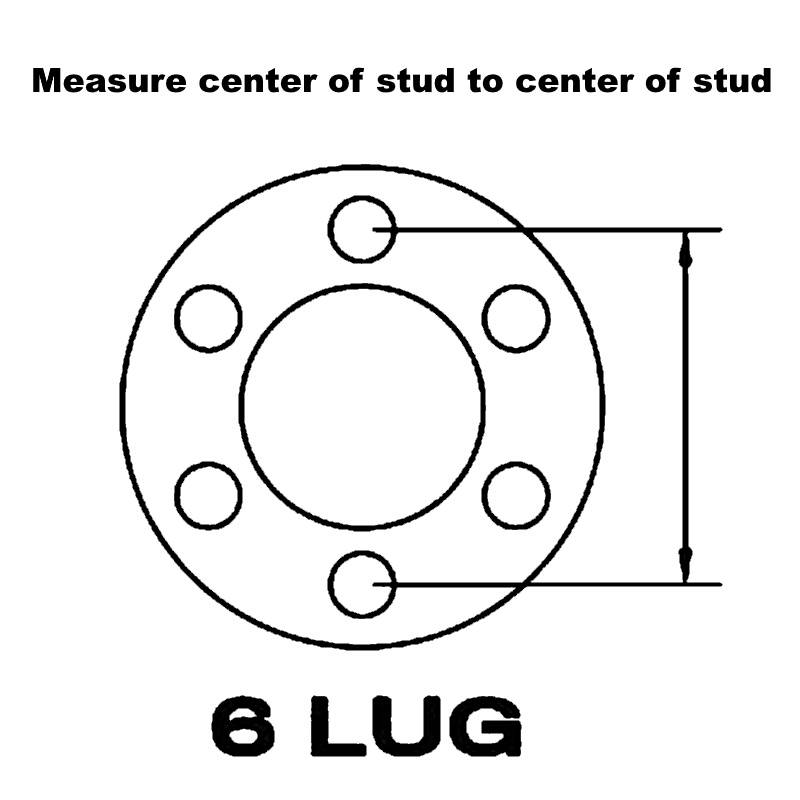

1 - Integrated hub-and-drum with 6 on 5-1/2" lug bolt pattern (see image on how to measure lug spacing)
- Works with 12" x 2" hydraulic and electric trailer brakes
- 1/2"-20 thread pitch lug studs
- Rated 3000 lbs capacity per side
- 1 - 15245 outer bearing cup race (pre-installed)
- 1 - 25520 inner bearing cup race (pre-installed)
- Works with 15123 outer bearing cone and 25580 inner bearing cone (not included)
This trailer brake hub and drum is interchangeable with all industry standard axle brands including Dexter Axle, Lippert Components (LCI), Rockwell American, AL-KO, Axle Tek, TK Trailer Axles, UFP by Dexter Marine, Tie Down by Dexter Marine, and C.E. Smith.
Note: 5000lb and 5200lb axles normally have an outer bearing number LM67048 which has a 1.250" inner diameter. This drum uses a 15123 outer bearing which is the same bearing inner diameter and will fit the 5000lb and 5200lb axles. The only difference is the outer bore of the drum. If you have LM67048 outer bearings then we recommend buying the 15123 bearing that fits this.
