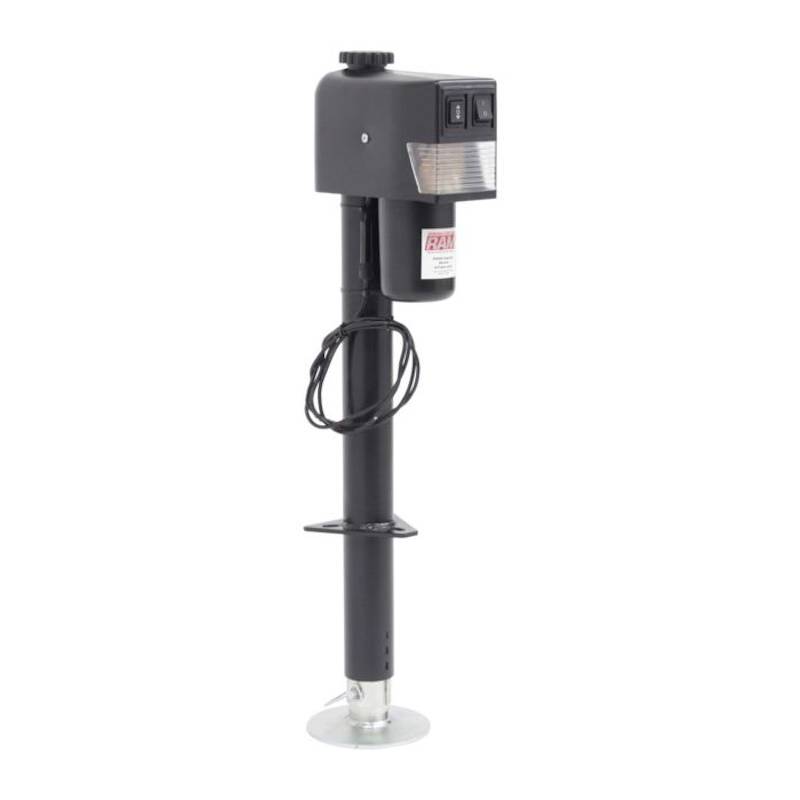

RAM 3,500lb Black top cowling heavy duty electric trailer tongue jack used with trailers that have an a-frame coupler. Can be welded or bolted in place. Rated for 3,500lb lift capacity. Easy to operate with just a flip of the switch.
Durable exterior grade black powder-coat finish on outer tube. Zinc finish inner tube with removable 4-3/4" diameter sand foot. Bright white LED light for easy night time hookup. Durable hardened steel gears for year and years of normal use. Crank handle for manual override in case of power loss.
Grounds thru the a-frame mounting plate. Includes a 57" single fused power wire to connect with a full size 12 volt RV/Marine deep cycle battery (battery not included).
Typically used on travel trailers, cargo, utility and other trailer types with a frame couplers.
- 3,500lb Lift Capacity

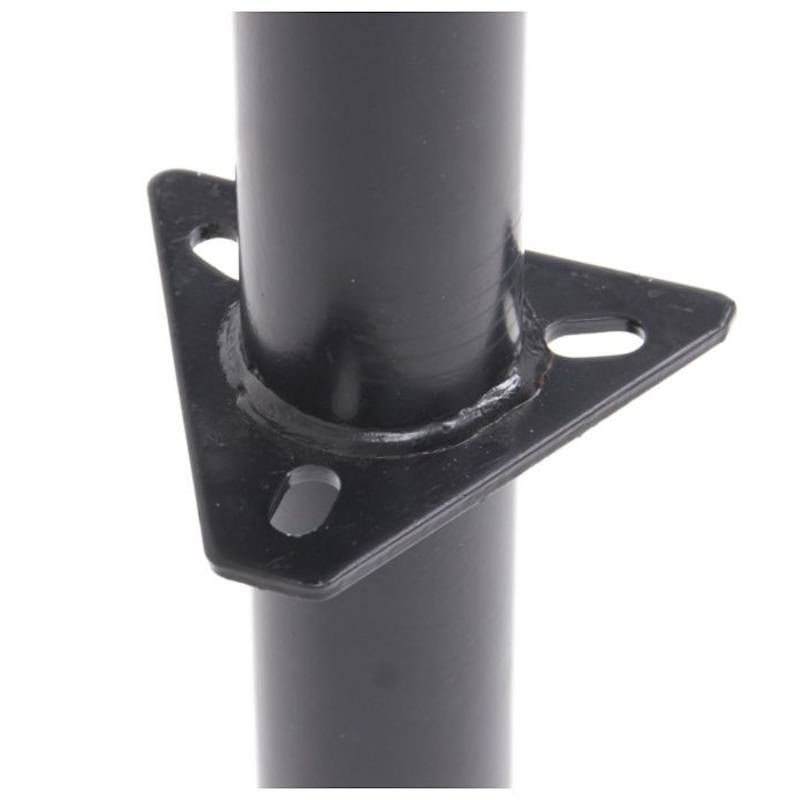

- Pre-installed mounting plate fits all standard a-frame couplers

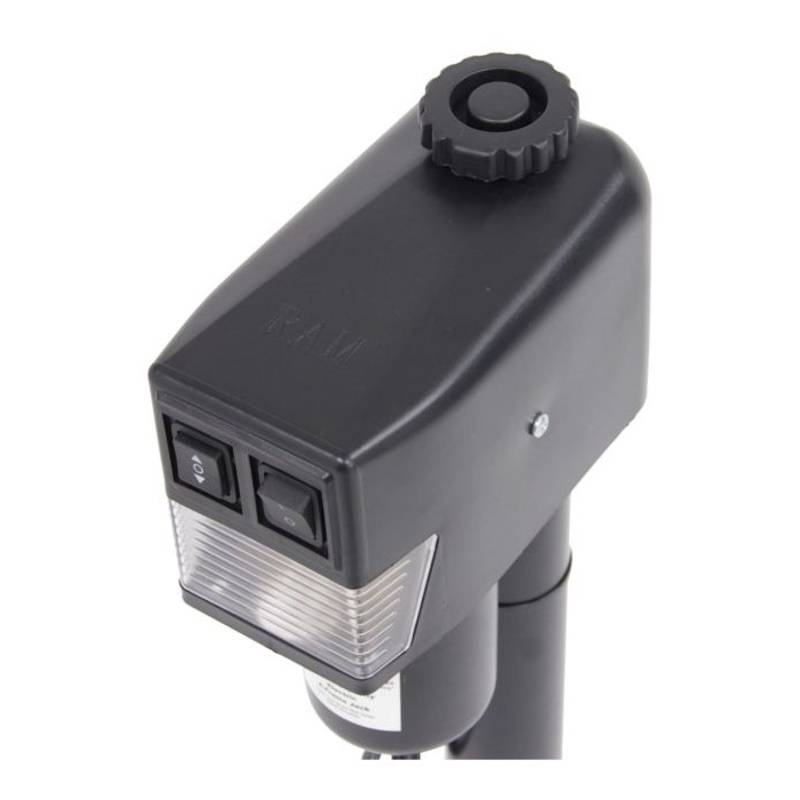

- Easy to operate with just a flip of the switch
- Durable exterior grade black outer tube and zinc inner tube
- Zinc finish inner tube with removable sand foot

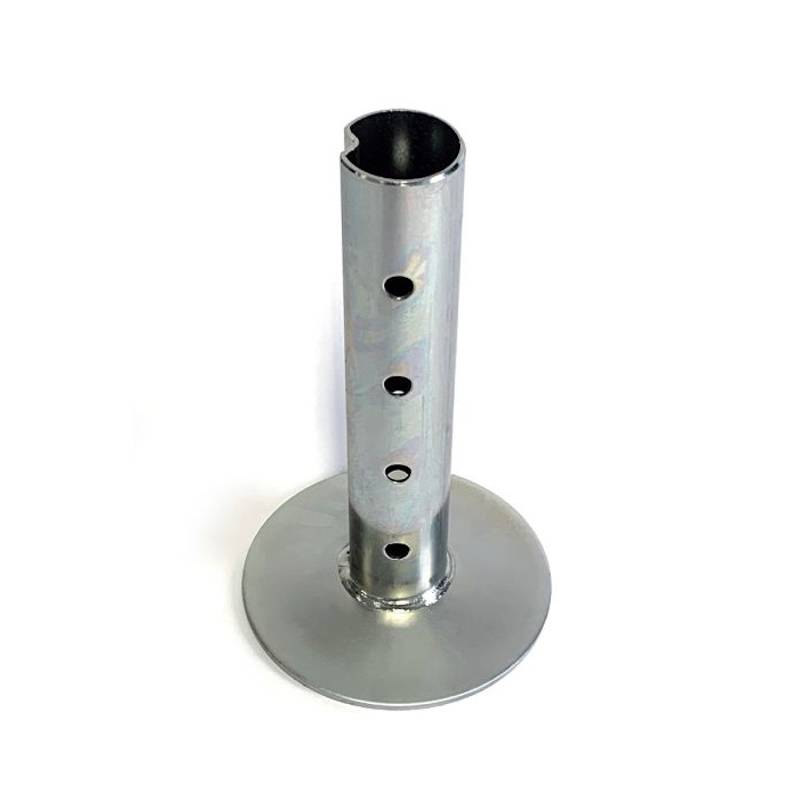

- Includes drop leg for 7-1/2″ of additional adjustment
- Bright white LED light for easy night time hookup
- Durable hardened steel gears for years and of normal use

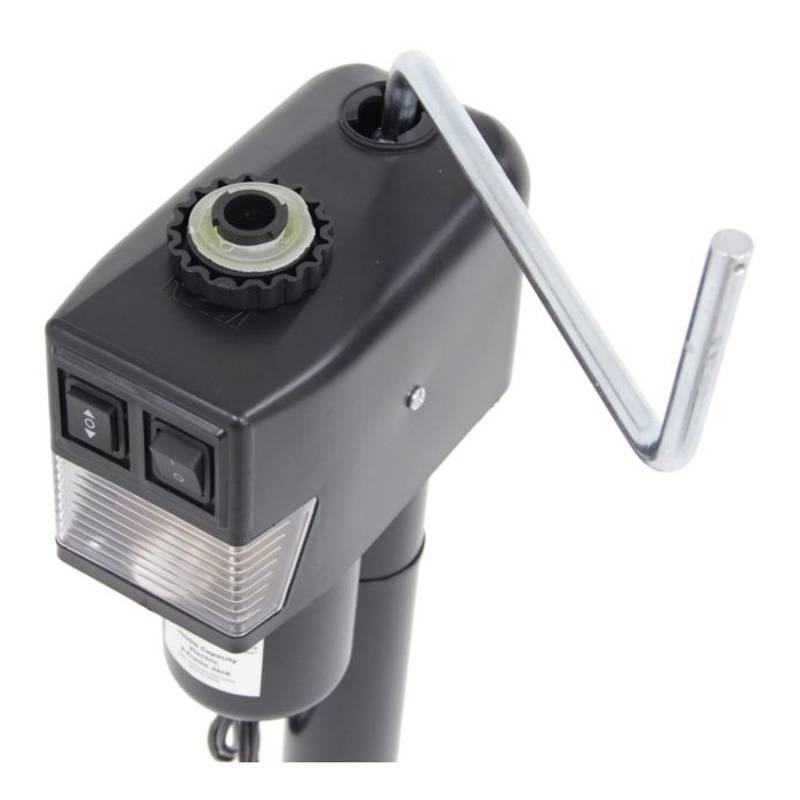

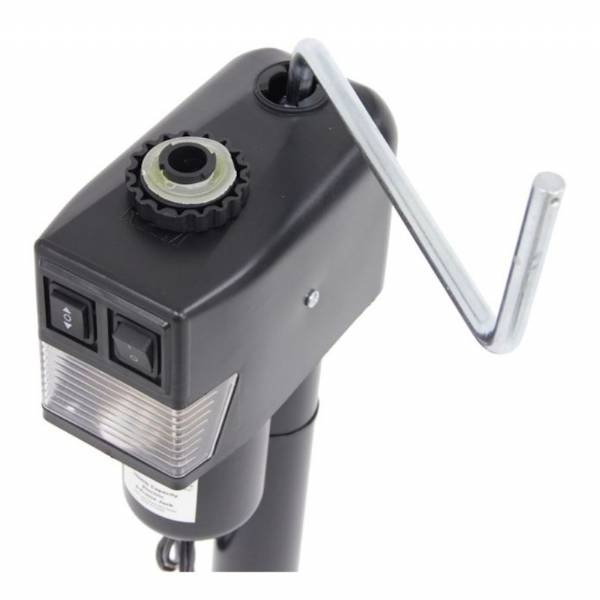

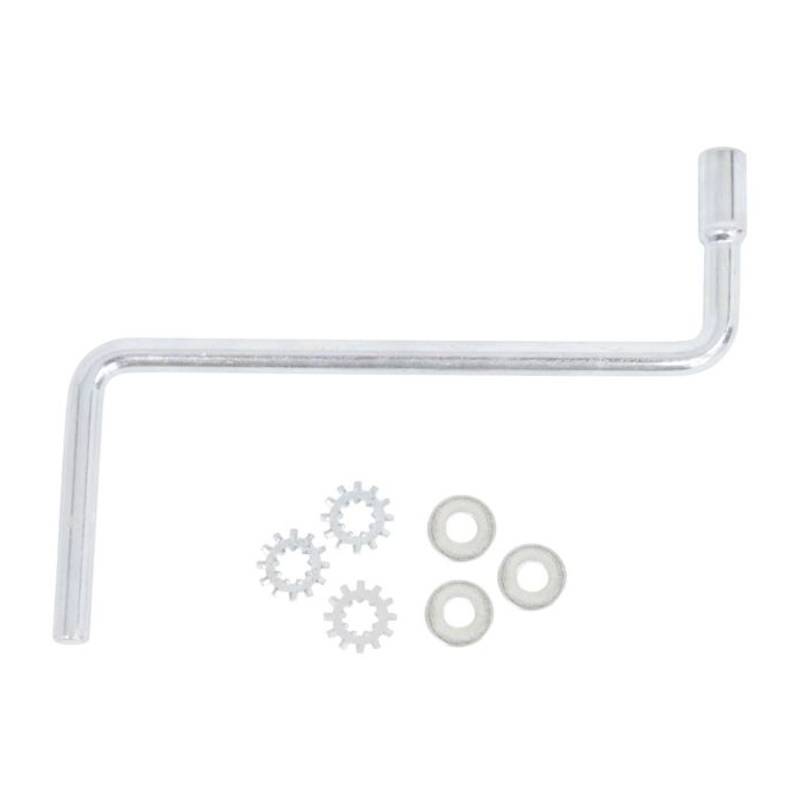

- Crank handle for manual override in case of power loss
- Setup for use with a 12 volt RV/Marine deep cycle battery (battery not included)
- 57″ single wire to hook up to trailer battery (self grounding thru mounting plate)
- Can be bolt-on or weld-on
- Intermediate leg extends 18"
- Drop leg with pull pin extends up to 5-3/4"

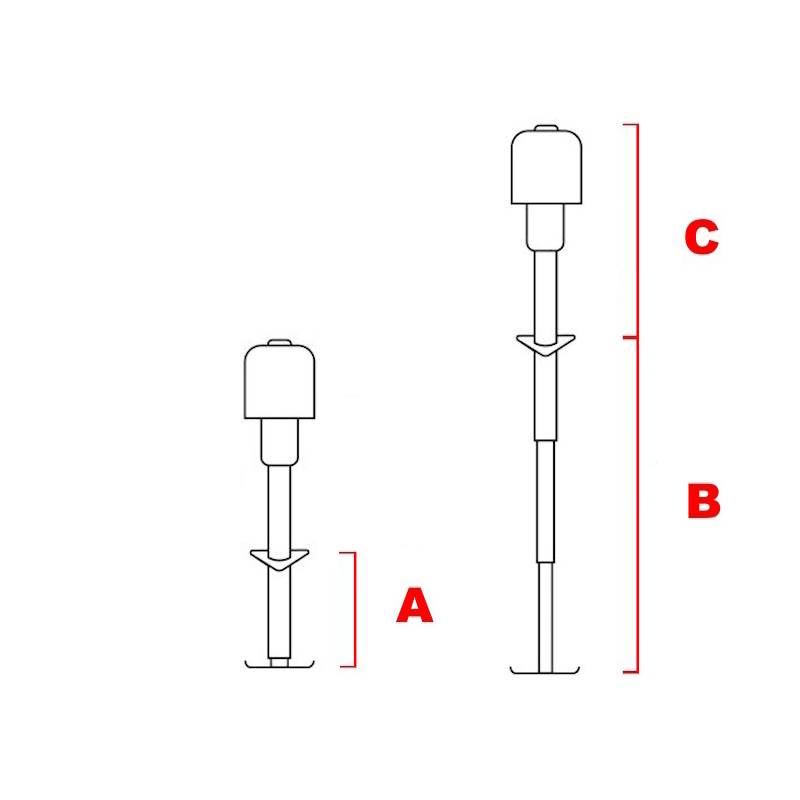

Dimensions see image
- (A) Retracted = 9.75"
- (B) Extended = 33-1/2"
- (C) Clearance = 20-1/2"
