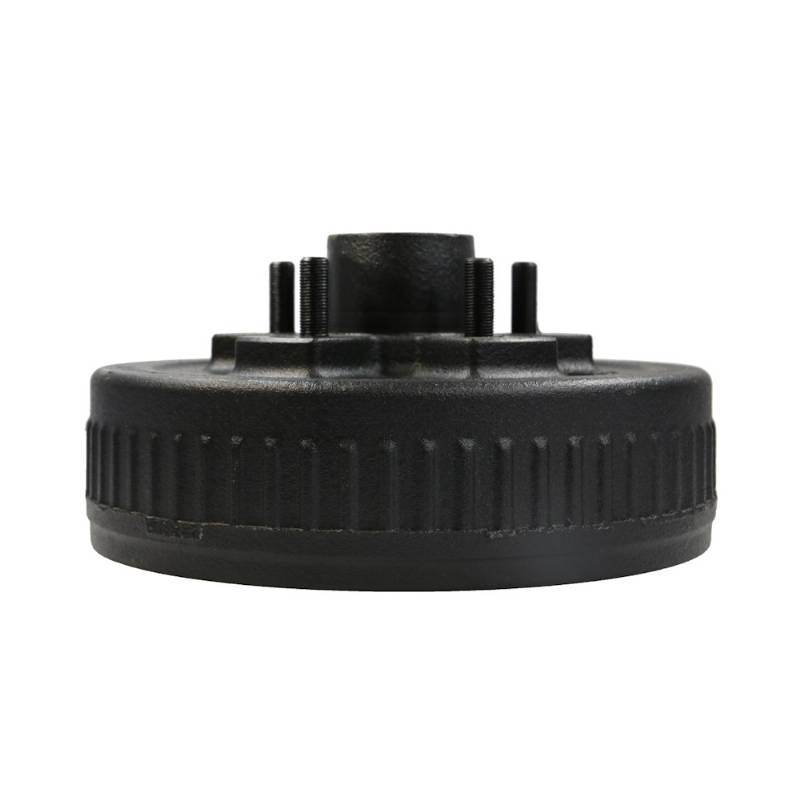

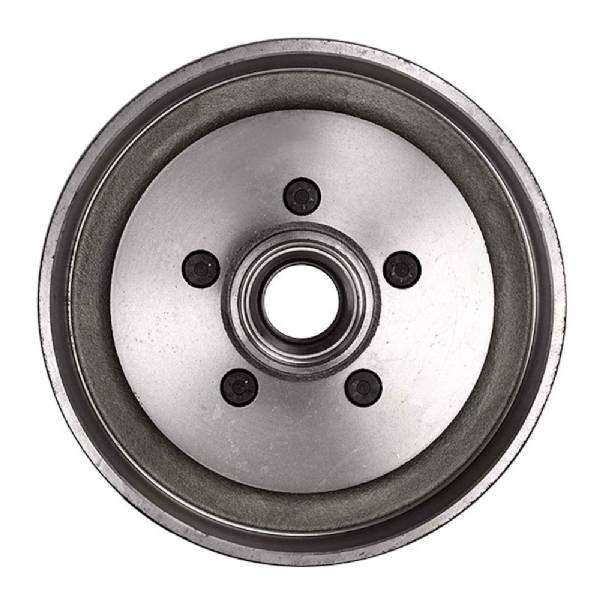

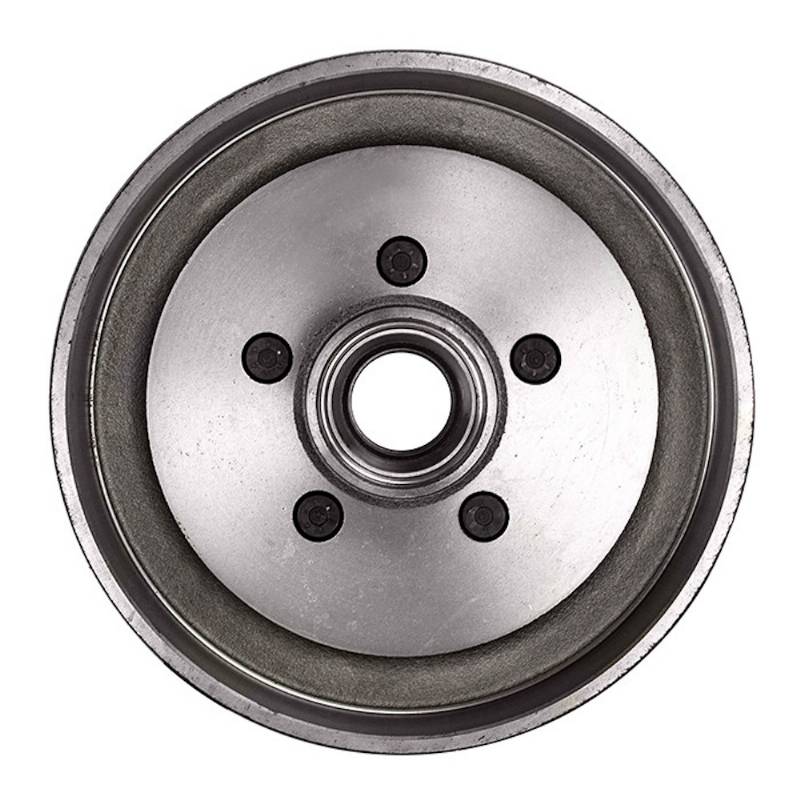

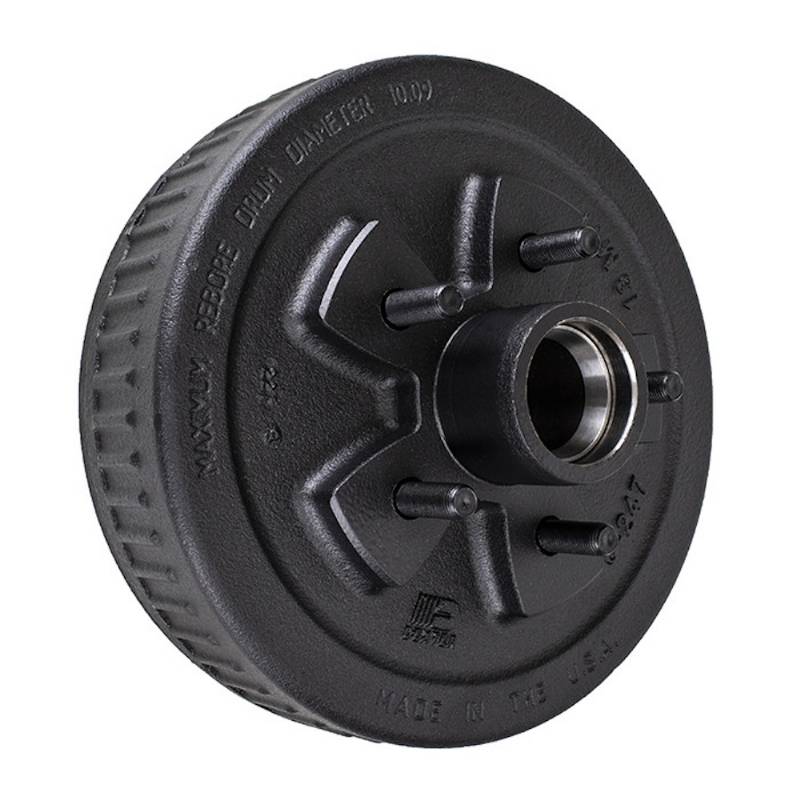

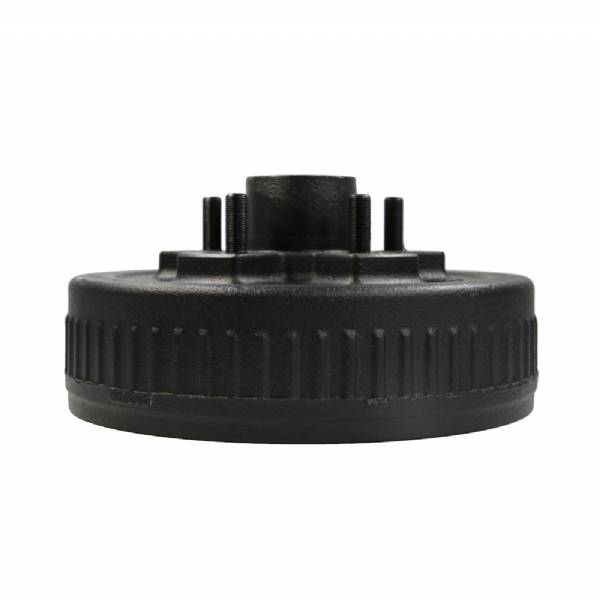

Dexter 8-247-5 10" hub and drum fits 3500lb capacity axles and has a 5 on 4-1/2" bolt pattern. Compatible with electric and hydraulic drum brake systems. Compatible all with E-Z Lube, Sure-Lube, Accu-Lube, Super Lube, Easy Grease and non lubing spindles. Interchangeable with all major trailer axle brands that use a 1-1/16" inner diameter outer bearing and a 1-3/8" inner diameter inner bearing combination.

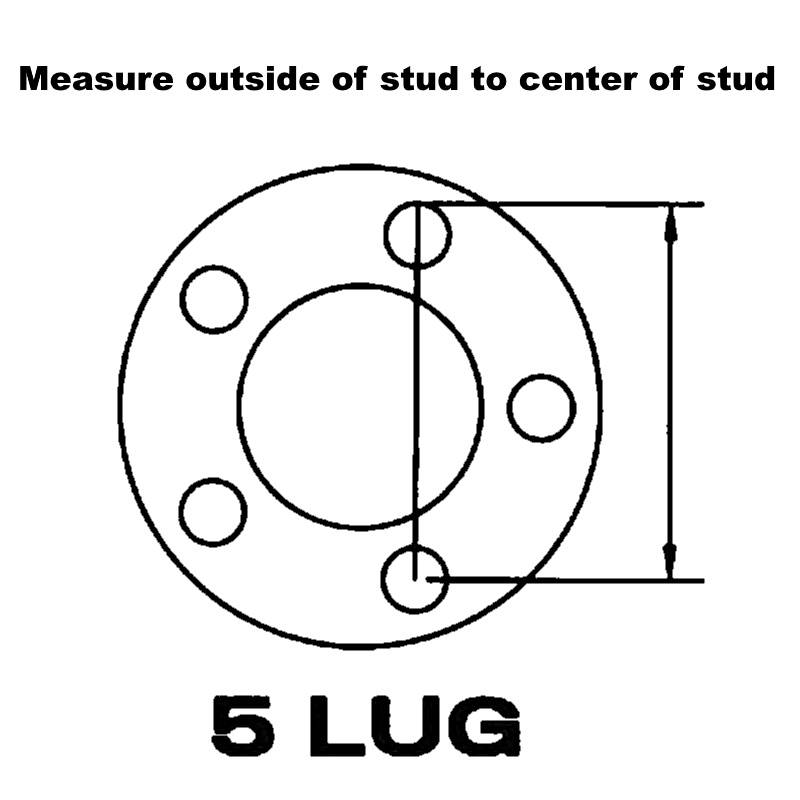

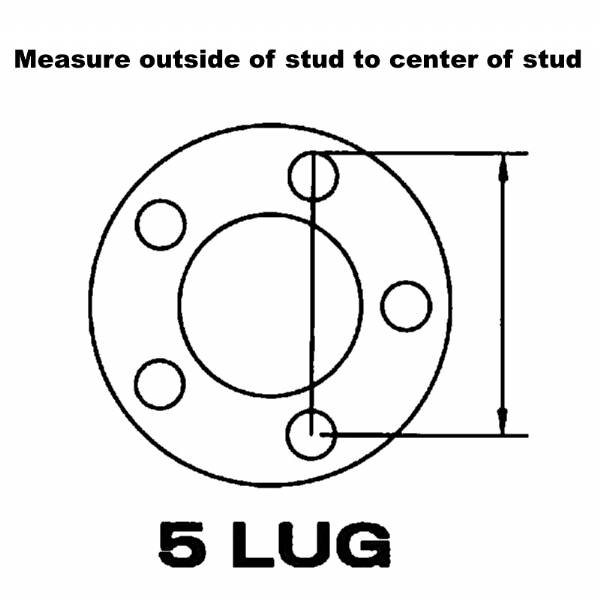

1 - Integrated hub-and-drum with 5 on 4-1/2" lug bolt pattern (see image on how to measure lug spacing)
- Works with 10" x 2-1/4" hydraulic and electric trailer brakes
- 1/2"-20 thread pitch lug studs
- Rated 1750 lbs. capacity per side
- 1 - L44610 outer bearing cup race (pre-installed)
- 1 - L68111 inner bearing cup race (pre-installed)
- Works with L68149 outer bearing cone and L68149 inner bearing cone (not included)
This trailer brake hub and drum is interchangeable with all industry standard axle brands including Dexter Axle, Lippert Components (LCI), Rockwell American, AL-KO, Axle Tek, TK Trailer Axles, UFP by Dexter Marine, Tie Down by Dexter Marine, and C.E. Smith.
