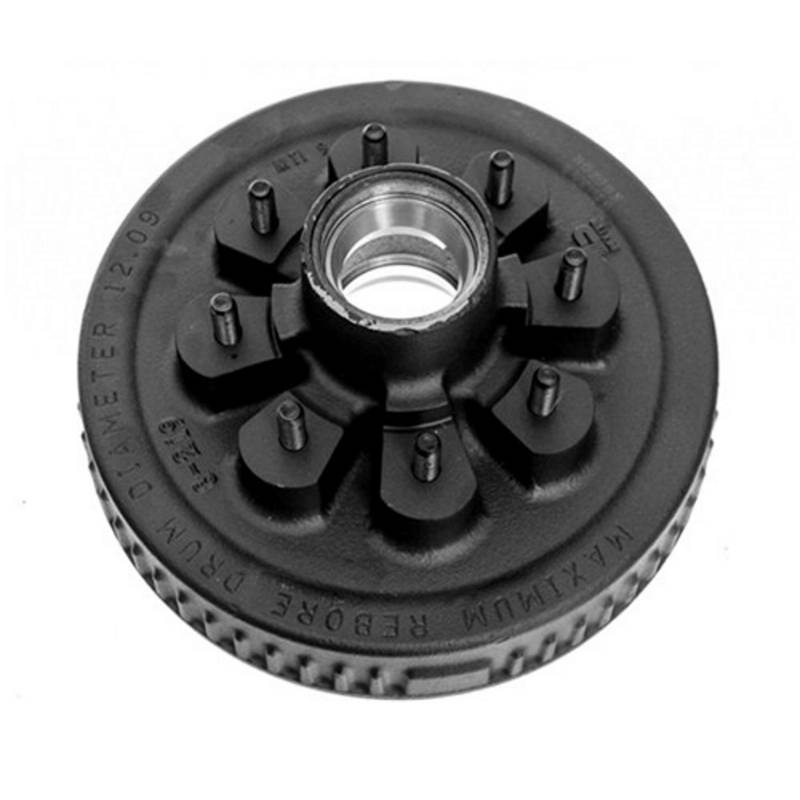

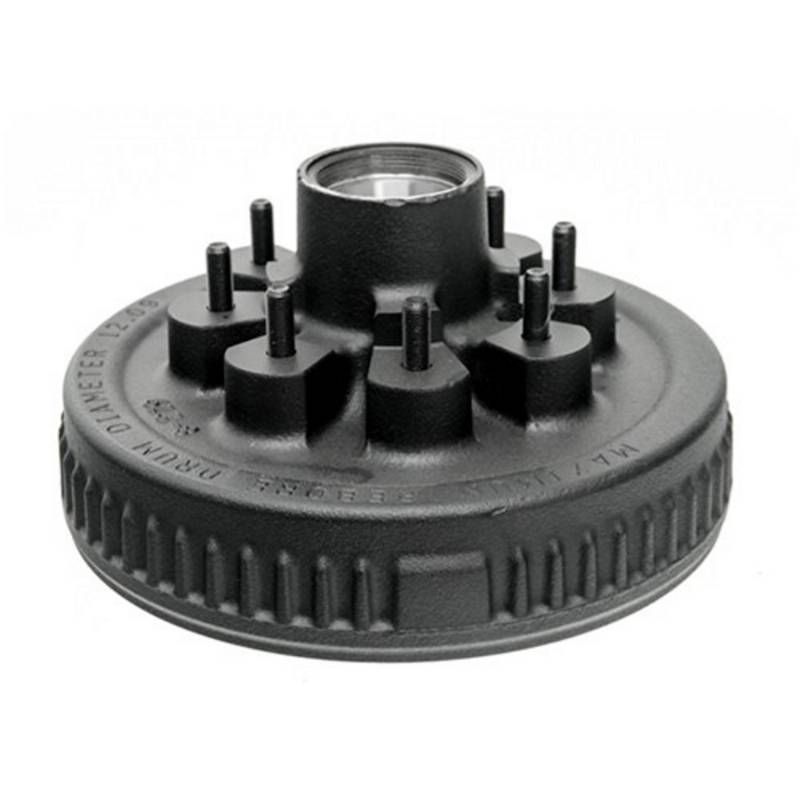

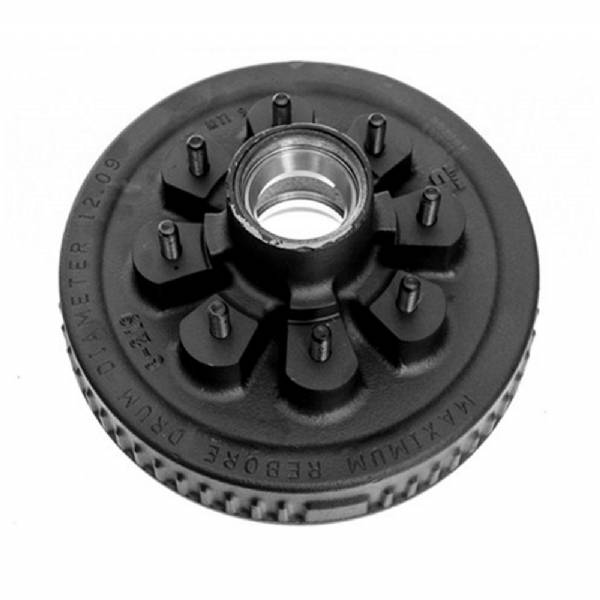

Dexter 8-219-9 12" OIL BATH STYLE hub and drum fits 6000lb and 7000lb capacity axles and has a 8 on 6-1/2" bolt pattern. Compatible with electric and hydraulic drum brake systems. Compatible all with E-Z Lube, Sure-Lube, Accu-Lube, Super Lube, Easy Grease and non lubing spindles. Interchangeable with all major trailer axle brands that use a 1-1/4" inner diameter outer bearing and a 1-3/4" inner diameter inner bearing combination.

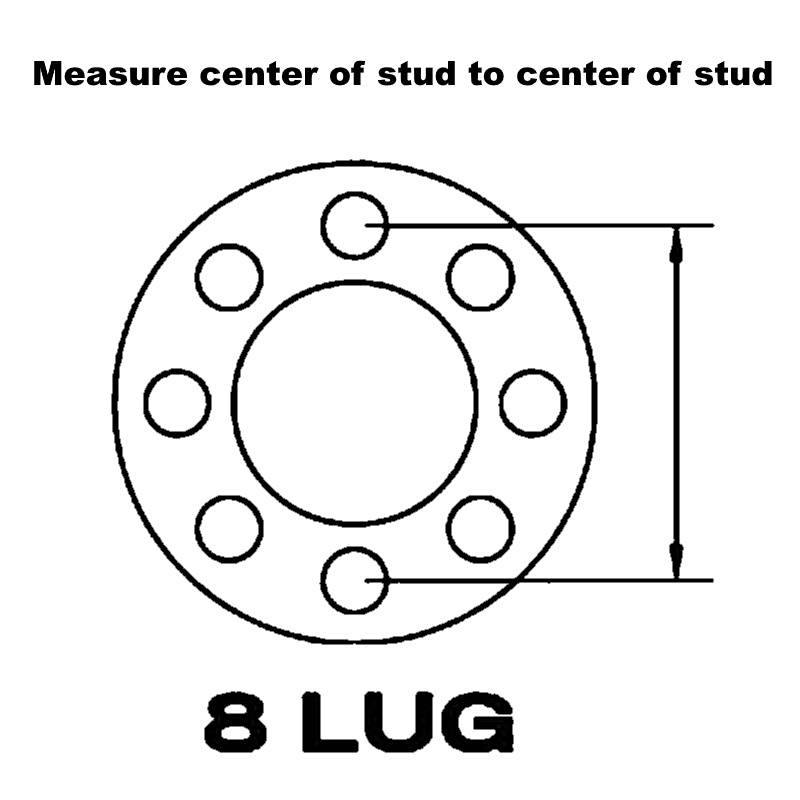

1 - Integrated hub-and-drum with 8 on 6-1/2" lug bolt pattern (see image on how to measure lug spacing)
- Works with 12" x 2" hydraulic and electric trailer brakes
- Threaded out bore for screw in style oil cap
- 1/2"-20 thread pitch lug studs
- Rated 3500 lbs capacity per side
- 1 - 14276 outer bearing cup race (pre-installed)
- 1 - 25520 inner bearing cup race (pre-installed)
- Works with 14125A outer bearing cone and 25580 inner bearing cone (not included)
This trailer brake hub and drum is interchangeable with all industry standard axle brands including Dexter Axle, Lippert Components (LCI), Rockwell American, AL-KO, Axle Tek, TK Trailer Axles, UFP by Dexter Marine, Tie Down by Dexter Marine, and C.E. Smith.
