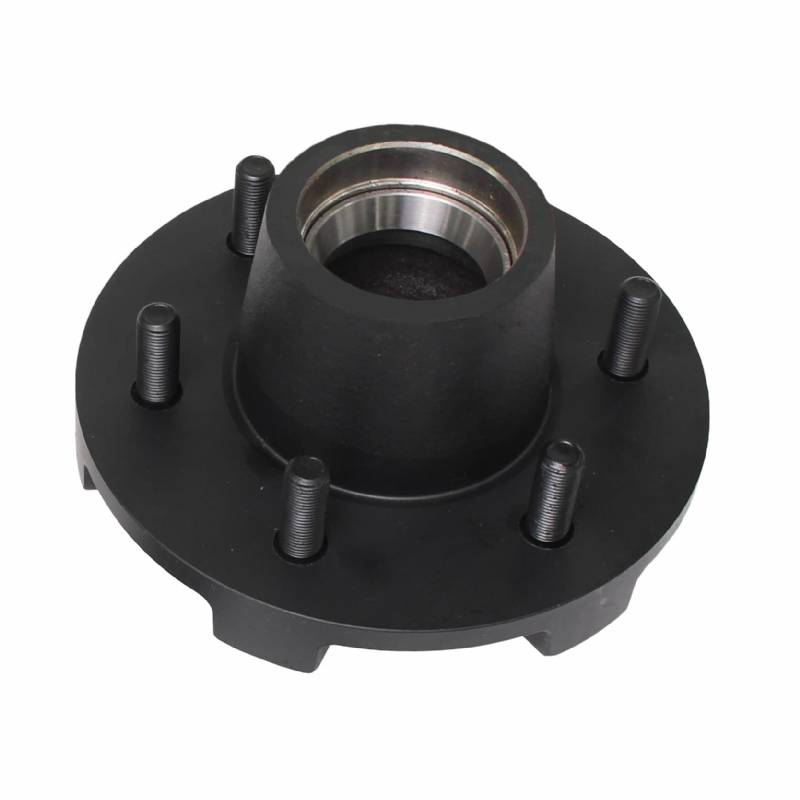

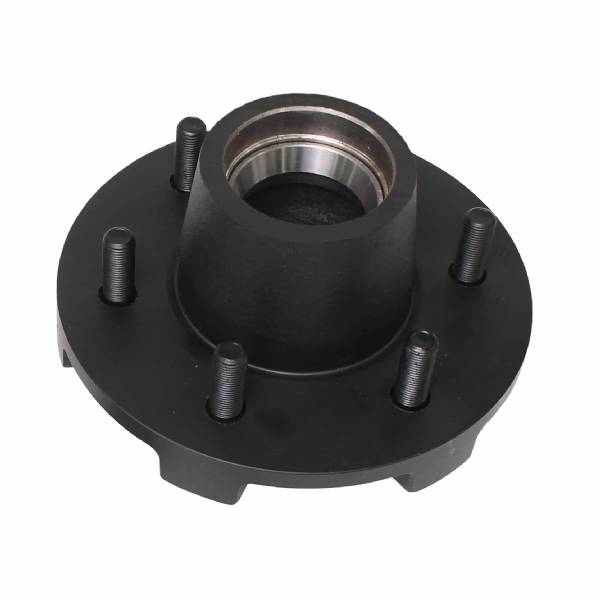

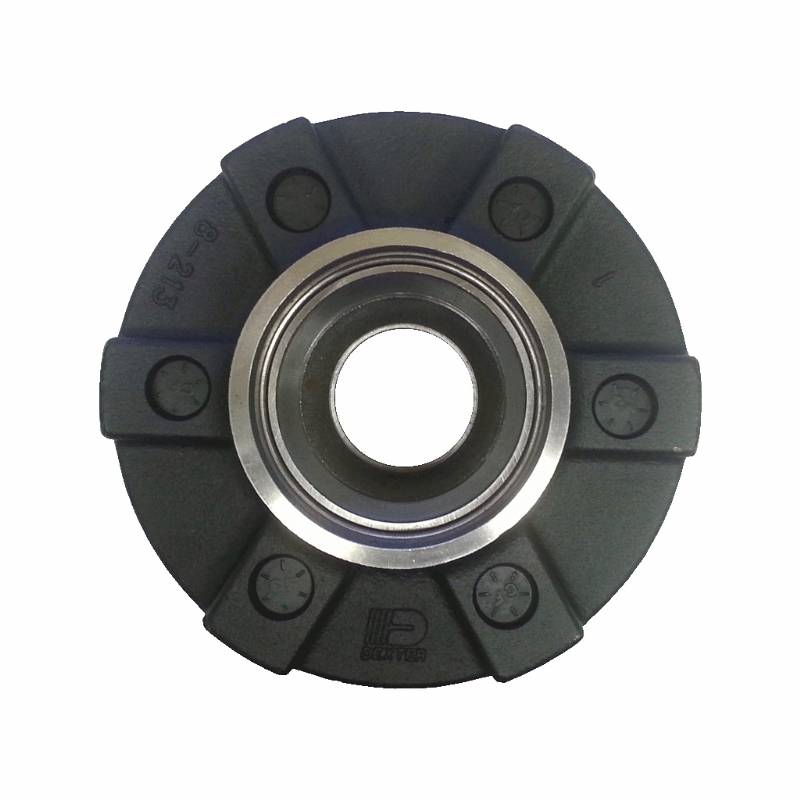

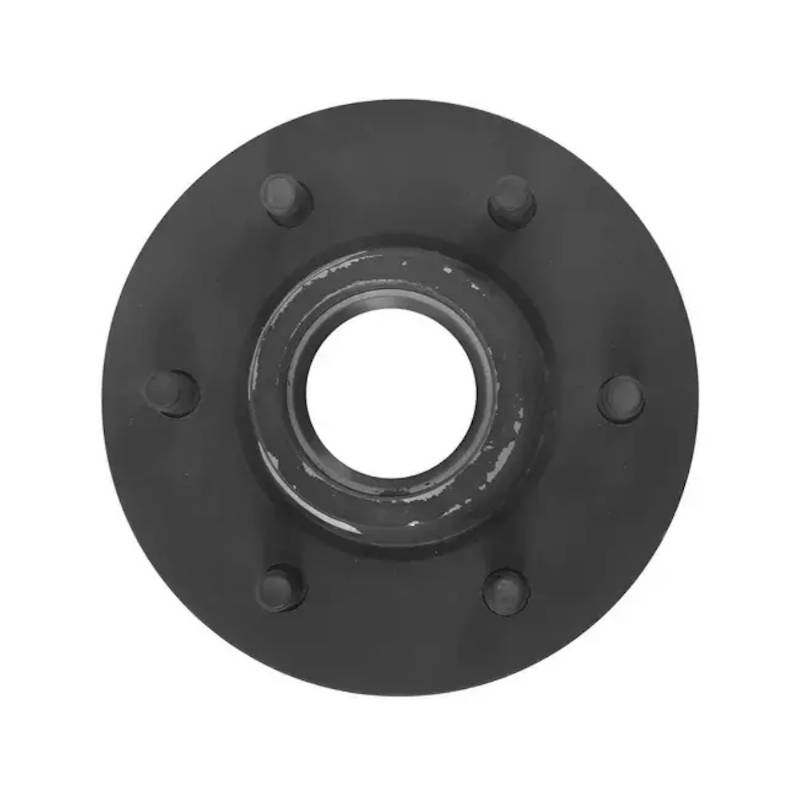

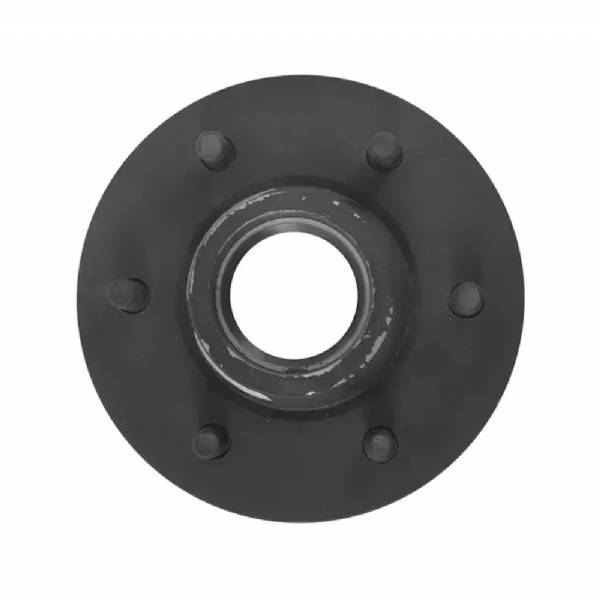

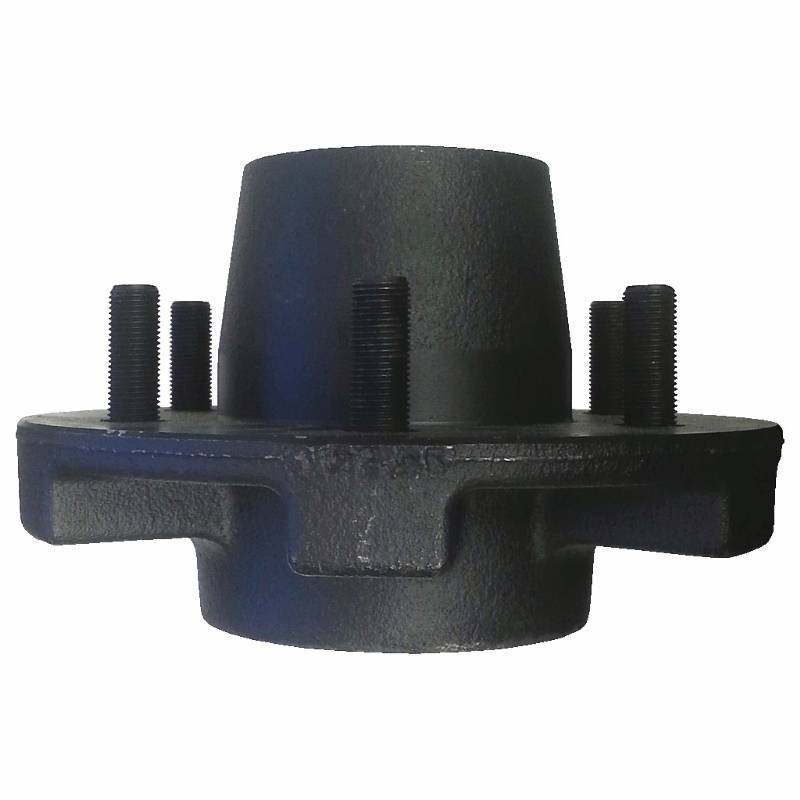

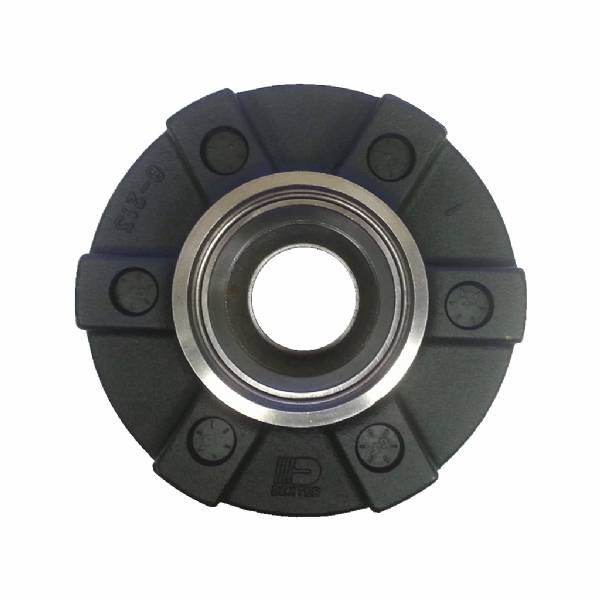

Dexter 8-213-9 idler hub fits 5200lb to 6000lb capacity axles and has a 6 on 5-1/2" bolt pattern. Compatible all with 1-1/4" inner diameter outer bearing and a 1-3/4" inner diameter inner bearing combination style E-Z Lube, Sure-Lube, Accu-Lube, Super Lube, Easy Grease and non lubing spindles. Interchangeable with all major trailer axle brands.

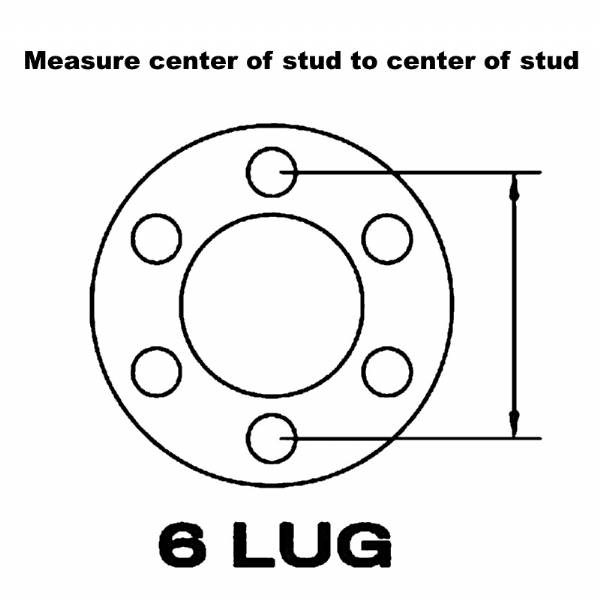

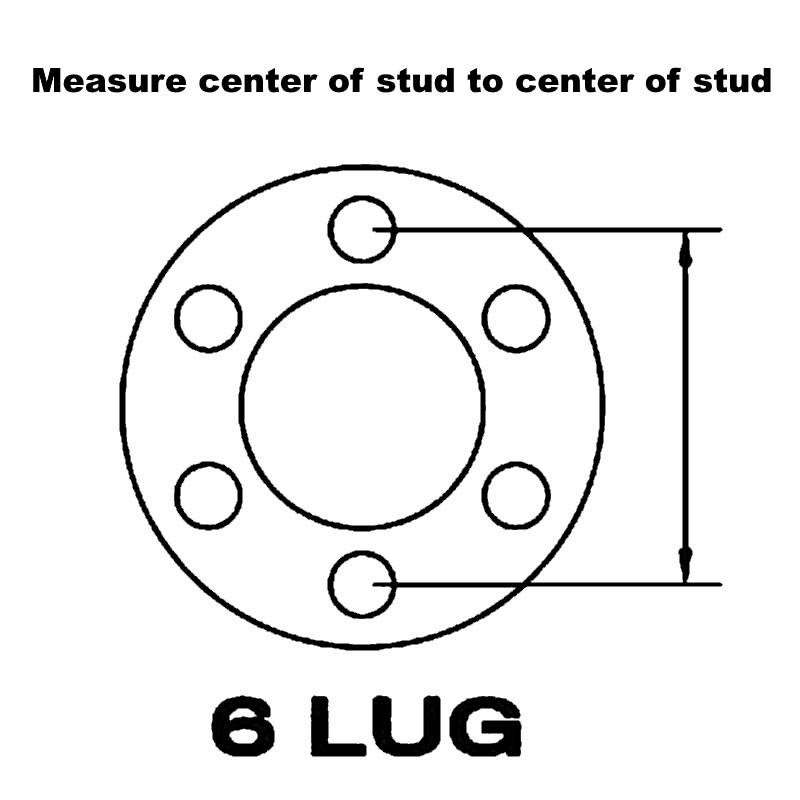

1 - Idler hub with 6 on 5-1/2" lug bolt pattern (see image on how to measure lug spacing)
- 4-1/2" overall height
- 1/2"-20 thread pitch lug studs
- 1 - 15245 outer bearing race (pre-installed)
- 1 - 25520 inner bearing race (pre-installed)
- has a 2.44" bore diameter
- Rated 3000 lbs. capacity per side
This trailer idler hub is interchangeable with all industry standard axle brands including Dexter Axle, Lippert Components (LCI), Rockwell American, AL-KO, Axle Tek, TK Trailer Axles, UFP by Dexter Marine, Tie Down by Dexter Marine, and C.E. Smith.
