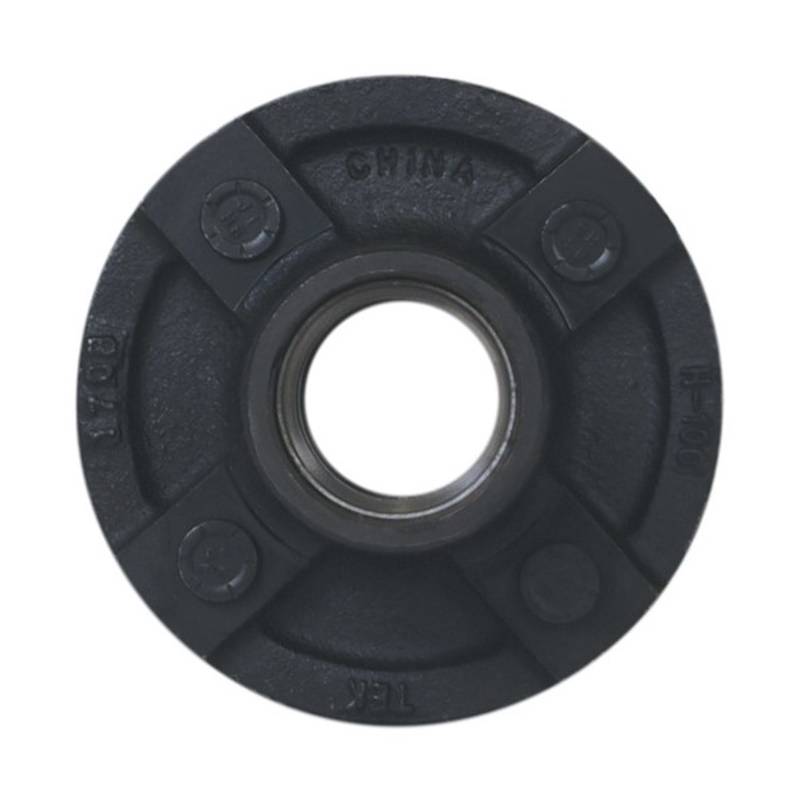

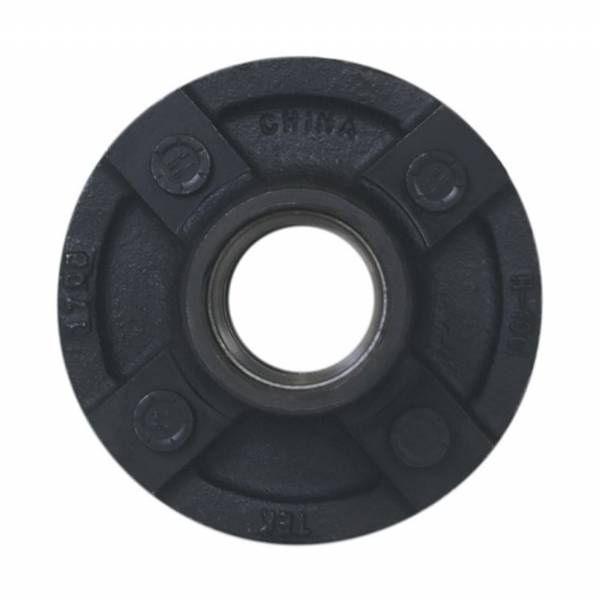

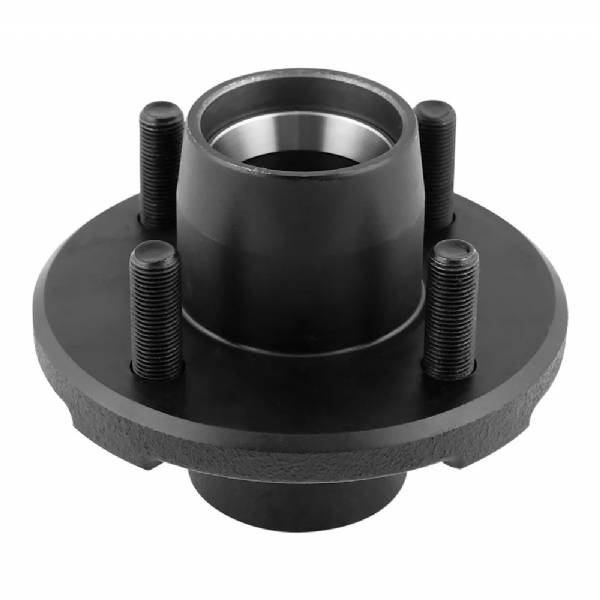

Axle Teknology import 17-100 pre greased idler hub kit fits 1250lb to 2000lb capacity axles and has a 4 on 4" bolt pattern. No need to assemble, this idler hub already has the bearings greased with Exxon Mobile RONEX™ MP lithium complex water resistant wheel bearing grease. The grease seal is already installed. No need to pack the bearings. Compatible all with BTR (1-1/16" bearing combination) and comes with both lubeable style dust cap and standard solid dust cap that are both interchangeable with all E-Z Lube, Sure-Lube, Accu-Lube, Super Lube, Easy Grease and non lubing spindles. Interchangeable with all major trailer axle brands. This hub has a 5-1/2" diameter flange for use with 8", 10", and 12" trailer wheels.
Complete pre-greased fully assembled boxed trailer idler hub kit for 1 wheel.

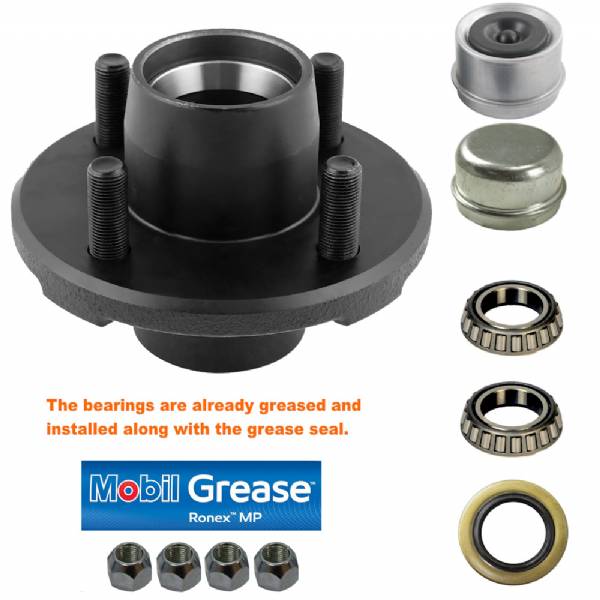

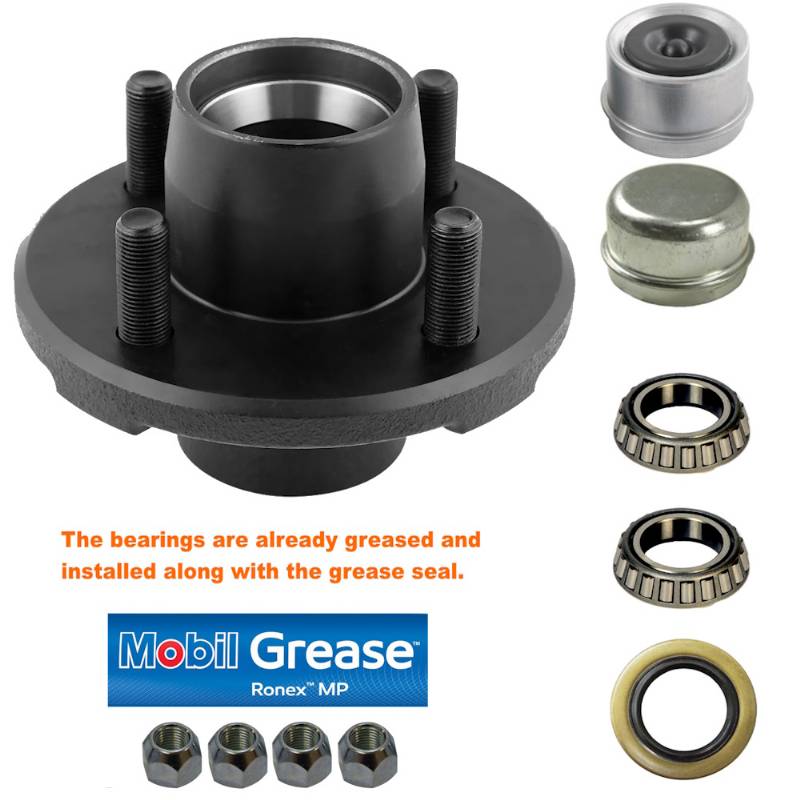

Pre-greased fully assembled kit Includes:

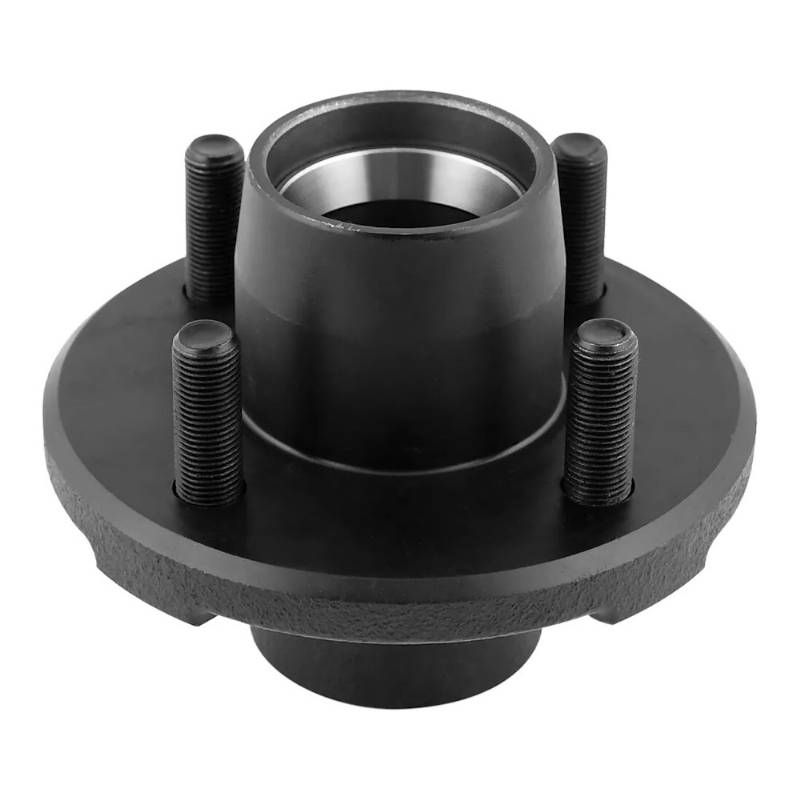

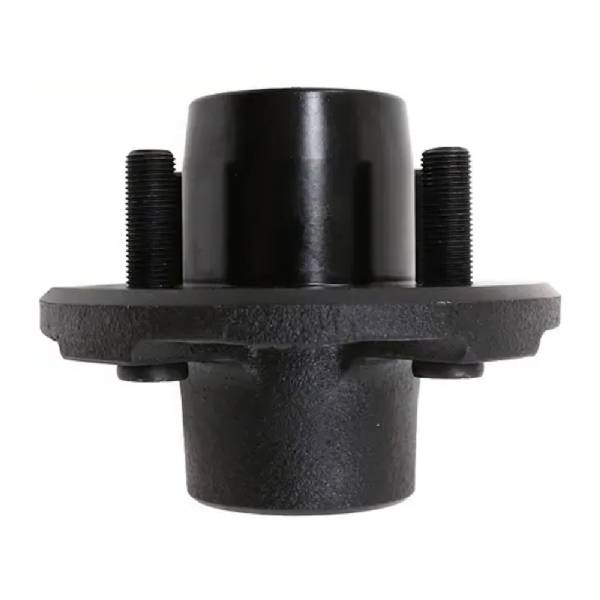

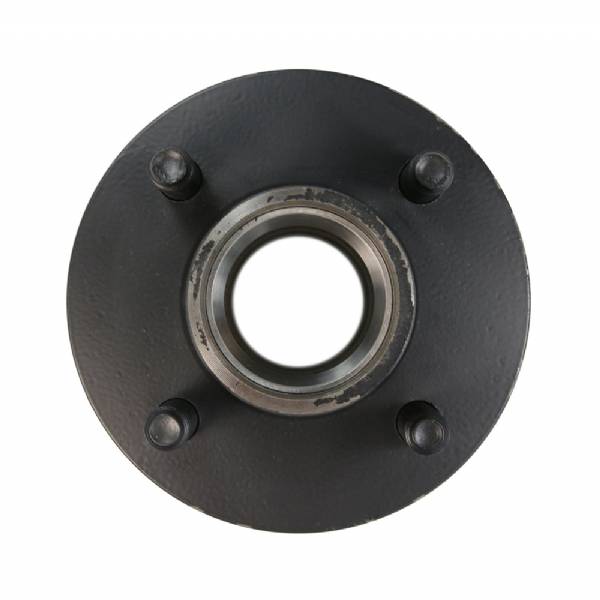

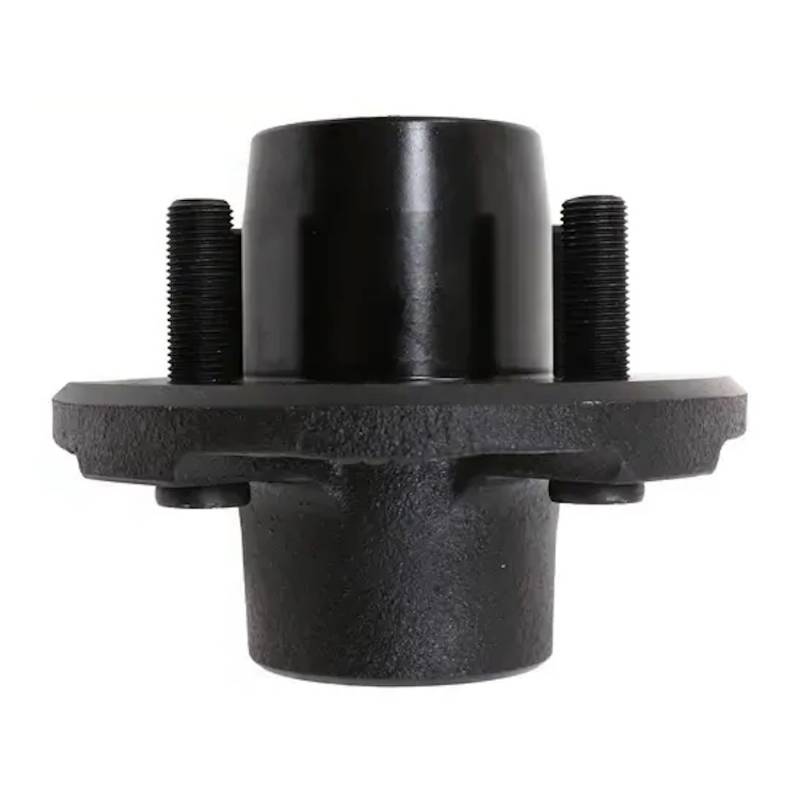

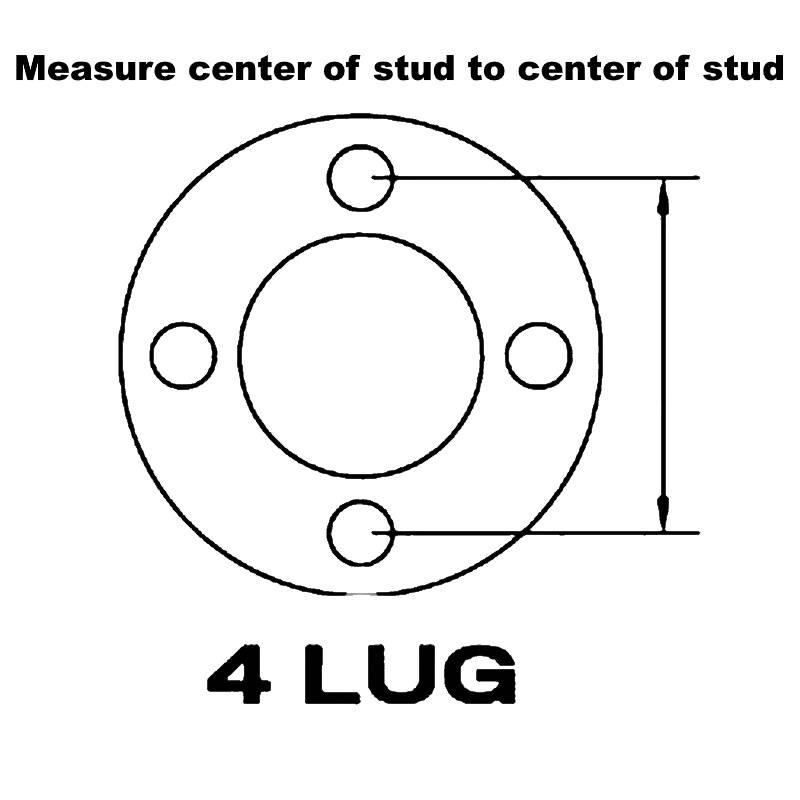

- 1 - Idler hub with 4 on 4" lug bolt pattern (see image on how to measure lug spacing)
- 5-1/2" diameter flange
- 1/2"-20 thread pitch lug studs
- Rated 1000 lbs. capacity per side
- 2 - L44649 bearing cone (pre-greased and pre-installed)
- 1-1/16" (1.063") inner diameter
- 2 - L44610 outer bearing cup race (pre-installed)
- 1 - 10-9 Grease seal (See Note)
- 1.500" inner diameter
- 1.987" outer diameter
- 1 - 1.98" outer diameter lube style cap and rubber plug
- 1 - 1.98" outer diameter standard dust cap
- 4 - 1/2"-20 thread pitch zinc plated 60 degree coned lug nuts
For use with 8", 10" and 12" wheels only
This kit is interchangeable with all industry standard axle brands including Dexter Axle, Lippert Components (LCI), Rockwell American, AL-KO, Axle Tek, TK Trailer Axles, UFP by Dexter Marine, Tie Down by Dexter Marine, and C.E. Smith.
Note: Some trailer applications use a 1.250" inner diameter grease seal. This kit will not work on those applications without purchasing an replacement grease seal#12192TB
